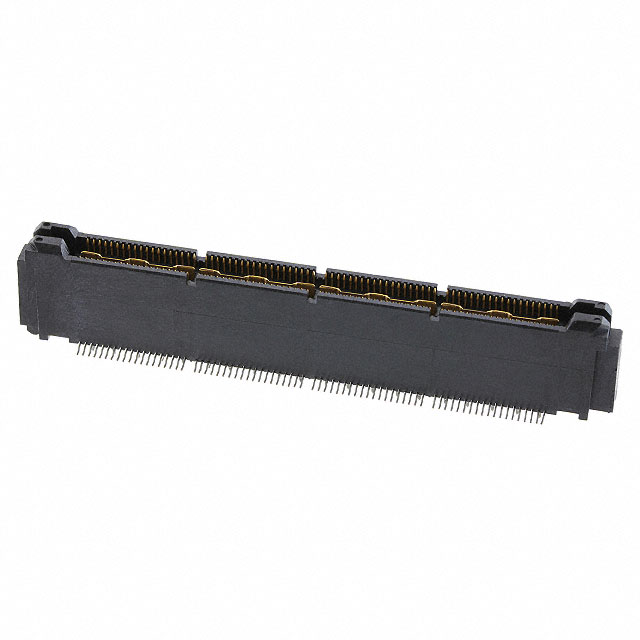

767057-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Row Spacing :

5.79 mm

Durability :

500 Cycles

Reference Standard :

UL

Number of Rows :

2

Housing Material :

Polymer

Contact Finish :

Palladium-Nickel

Contact Pattern :

RECTANGULAR

Termination :

Solder

Plating Thickness :

5μin

Number Of PCB Rows :

2

Max Operating Temperature :

125°C

PCB Contact Pattern :

RECTANGULAR

Stack Height (Mating) :

12.57mm 21.6mm

Dielectric Withstanding Voltage :

500VAC V

RoHS Status :

Non-RoHS Compliant

Operating Supply Voltage :

30V

Published :

2006

Factory Lead Time :

25 Weeks

Number of Positions :

152

Feature :

Board Guide, Ground Bus (Plane)

Number of Conductors :

ONE

Pitch :

0.025 0.64mm

Circuit Application :

Signal

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mating Alignment :

Without

IEC Conformance :

No

Insulation Resistance :

2MOhm

PCB Thickness :

1.57mm

Total Number of Contacts :

152

Packaging :

Tube

Series :

MICTOR

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Max Voltage Rating (AC) :

30V

Rated Current (Signal) :

1A

Polarization Key :

POLARIZED HOUSING

MIL Conformance :

No

Depth :

5.28mm

Reliability :

COMMERCIAL

Stack Height :

12.57mm

Contact Gender :

Male

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Color :

Black

Contact Plating :

Gold, Nickel

Height Above Board :

0.484 12.29mm

Contact Resistance :

10MOhm

Connector Type :

Plug, Outer Shroud Contacts

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

PCB Mount Alignment :

With

Contact Style :

BELLOWED TYPE

Orientation :

Vertical

Sealable :

No

Width :

5.2832mm

DIN Conformance :

No

Contact Finish Thickness :

5.00μin 0.127μm

Withdrawl Force-Min :

.139 N

Mounting Type :

Surface Mount

Mount :

Surface Mount, Through Hole

Contact Finish Thickness - Mating :

120 nm

Min Operating Temperature :

-55°C

Length :

63.5mm

Filter Feature :

No
