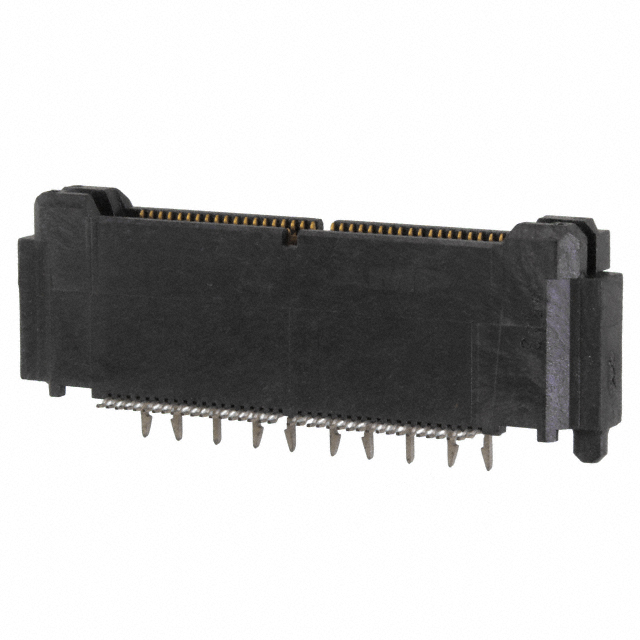

767057-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Durability :

500 Cycles

Number of Conductors :

ONE

Flammability Rating :

UL94 V-0

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Connector Type :

Plug, Outer Shroud Contacts

Total Number of Contacts :

76

PCB Thickness :

1.57mm

Number of Rows :

2

Stack Height (Mating) :

12.57mm 21.6mm

Mating Alignment :

Without

Housing Material :

Polymer

Pitch :

0.025 0.64mm

Number Of PCB Rows :

2

PCB Mount Alignment :

With

Filter Feature :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Finish Thickness - Mating :

120 nm

Polarization Key :

POLARIZED HOUSING

Length :

38.0746mm

DIN Conformance :

No

Plating Thickness :

5μin

Factory Lead Time :

25 Weeks

Stack Height :

12.57mm

Width :

5.2832mm

Body Depth :

0.484 inch

Rated Current (Signal) :

1A

RoHS Status :

Non-RoHS Compliant

Operating Temperature (Min) :

-55°C

Circuit Application :

Signal

Contact Plating :

Gold, Nickel

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Contact Finish :

Palladium-Nickel

Contact Finish Thickness :

5.00μin 0.127μm

Row Spacing :

5.79 mm

Sealable :

No

Contact Pattern :

RECTANGULAR

MIL Conformance :

No

Orientation :

Vertical

Reliability :

COMMERCIAL

IEC Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

PCB Contact Pattern :

RECTANGULAR

Series :

MICTOR

Termination :

Solder

Feature :

Board Guide, Ground Bus (Plane)

Contact Style :

BELLOWED TYPE

Number of Positions :

76

Color :

Black

ELV :

Compliant

Insulation Resistance :

2MOhm

Contact Gender :

Male

Operating Supply Voltage :

30V

Mount :

Surface Mount

Height Above Board :

0.484 12.29mm

Dielectric Withstanding Voltage :

500VAC V

Mounting Type :

Surface Mount

Packaging :

Tube

Reference Standard :

UL

Withdrawl Force-Min :

.139 N

Contact Resistance :

10MOhm

Published :

2006
