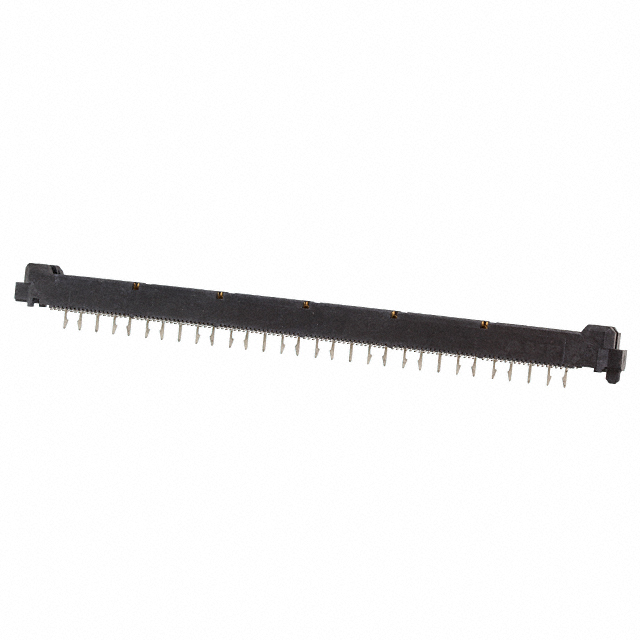

767056-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Contact Resistance :

10MOhm

Length :

88.9mm

Withdrawl Force-Min :

.139 N

Depth :

5.28mm

Contact Current Rating :

11.5A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

IEC Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Stack Height :

15.621mm

Number of Rows :

2

Differential Signaling :

yes

Orientation :

Vertical

Contact Finish :

Palladium-Nickel

Underplate Material :

Nickel

Width :

5.2832mm

Reliability :

COMMERCIAL

DIN Conformance :

No

Data Rate :

10 Gbps

ELV :

Compliant

Contact Finish Thickness - Mating :

120 nm

Contact Pattern :

RECTANGULAR

RoHS Status :

RoHS Compliant

Number of Conductors :

ONE

PCB Contact Pattern :

RECTANGULAR

Contact Finish Thickness :

5.00μin 0.127μm

Housing Material :

Polymer

Row Spacing :

5.79 mm

Mount :

Surface Mount

PCB Mount Alignment :

With

Mating Alignment :

Without

Factory Lead Time :

25 Weeks

Flammability Rating :

UL94 V-0

Polarization Key :

POLARIZED HOUSING

Insulation Resistance :

2MOhm

Packaging :

Tube

Color :

Black

Max Operating Temperature :

125°C

Contact Style :

BELLOWED TYPE

Published :

2007

Contact Plating :

Gold, Lead, Nickel, Tin

Number Of PCB Rows :

2

Max Voltage Rating (AC) :

30V

Series :

MICTOR

Feature :

Board Guide, Ground Bus (Plane)

Number of Power Positions :

6

Gender :

Male

Number of Positions :

228

JESD-609 Code :

e0

Reference Standard :

UL

Sealable :

No

Pitch :

0.025 0.64mm

Total Number of Contacts :

228

Mixed Contacts :

No

Filter Feature :

No

Number of Columns :

114

Pbfree Code :

No

Durability :

500 Cycles

Plating Thickness :

5μin

Mounting Type :

Surface Mount

Circuit Application :

Signal

Dielectric Withstanding Voltage :

500VAC V

Stack Height (Mating) :

6.6mm 15.62mm

Termination :

SMD/SMT

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Rated Current (Signal) :

1A

Min Operating Temperature :

-55°C

MIL Conformance :

No

Option :

GENERAL PURPOSE

PCB Thickness :

1.57mm

Operating Supply Voltage :

30V

Height Above Board :

0.251 6.38mm

Connector Type :

Plug, Outer Shroud Contacts

Height :

6.5278mm
