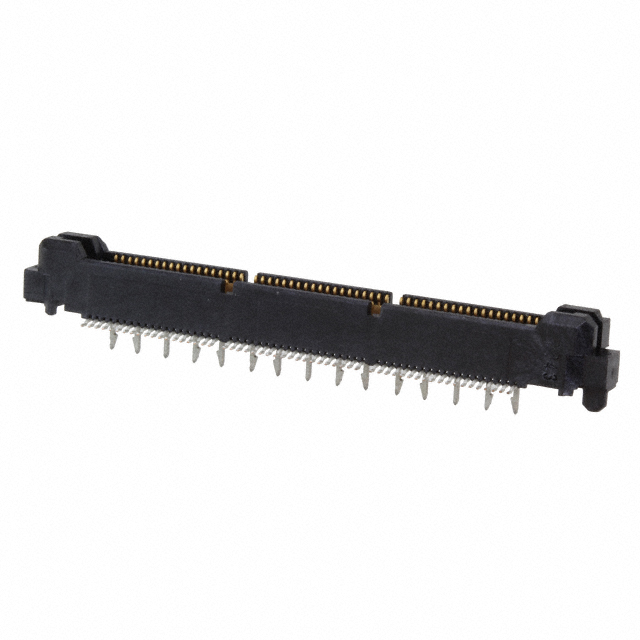

767056-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Reliability :

COMMERCIAL

Orientation :

Vertical

Flammability Rating :

UL94 V-0

Number of Power Positions :

3

Contact Finish Thickness - Mating :

120 nm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Rated Current (Signal) :

1A

Mixed Contacts :

No

Published :

2007

Mounting Type :

Surface Mount

Contact Current Rating :

11.5A

Number of Rows :

2

Durability :

500 Cycles

Min Operating Temperature :

-55°C

Circuit Application :

Signal

RoHS Status :

RoHS Compliant

Packaging :

Tube

Pitch :

0.025 0.64mm

Series :

MICTOR

Filter Feature :

No

JESD-609 Code :

e0

Height :

6.5278mm

DIN Conformance :

No

Stack Height (Mating) :

6.6mm 15.62mm

Color :

Black

Contact Finish :

Palladium-Nickel

Underplate Material :

Nickel

PCB Contact Pattern :

RECTANGULAR

Factory Lead Time :

25 Weeks

Feature :

Board Guide, Ground Bus (Plane)

MIL Conformance :

No

Max Operating Temperature :

125°C

Contact Plating :

Gold, Lead, Nickel, Tin

Contact Pattern :

RECTANGULAR

Number of Columns :

57

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Contact Finish Thickness :

5.00μin 0.127μm

Mating Alignment :

Without

Plating Thickness :

5μin

Differential Signaling :

yes

Reference Standard :

UL

Pbfree Code :

No

Option :

GENERAL PURPOSE

ELV :

Compliant

Number of Positions :

114

Width :

5.2832mm

Total Number of Contacts :

114

PCB Thickness :

1.57mm

Number of Conductors :

ONE

Lead Free :

Lead Free

Insulation Resistance :

2MOhm

Mount :

Surface Mount

Sealable :

No

Row Spacing :

5.79 mm

Contact Resistance :

10MOhm

Number Of PCB Rows :

2

Length :

50.79746mm

Termination :

SMD/SMT

Operating Supply Voltage :

30V

Contact Style :

BELLOWED TYPE

Height Above Board :

0.251 6.38mm

Dielectric Withstanding Voltage :

500VAC V

Connector Type :

Plug, Outer Shroud Contacts

Housing Material :

Polymer

Stack Height :

15.621mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Gender :

Male

PCB Mount Alignment :

With

ECCN Code :

EAR99

Polarization Key :

POLARIZED HOUSING

IEC Conformance :

No

Data Rate :

10 Gbps
