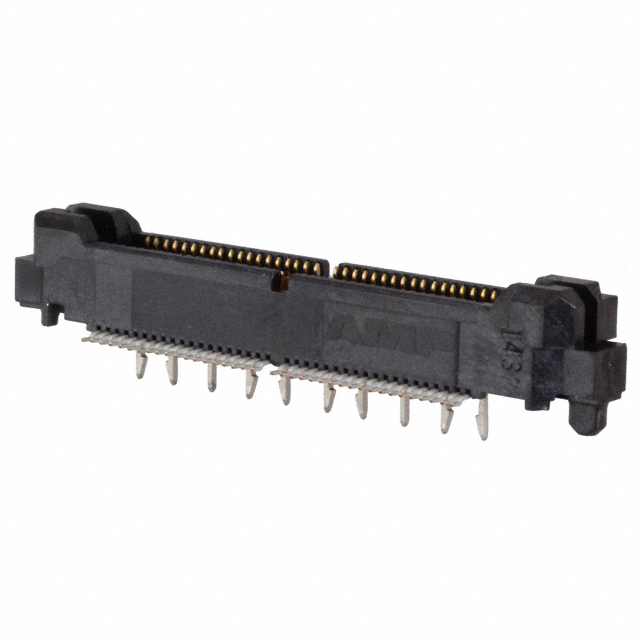

767056-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Total Number of Contacts :

76

HTS Code :

8536.69.40.40

Underplate Material :

Nickel

Data Rate :

10 Gbps

Connector Type :

Plug, Outer Shroud Contacts

Stack Height :

15.621mm

Color :

Black

Plating Thickness :

5μin

Number of Rows :

2

JESD-609 Code :

e0

Housing Material :

Polymer

Filter Feature :

No

Min Operating Temperature :

-55°C

Stack Height (Mating) :

6.6mm 15.62mm

Number of Conductors :

ONE

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mixed Contacts :

No

Reference Standard :

UL

Factory Lead Time :

25 Weeks

Reliability :

COMMERCIAL

Max Operating Temperature :

125°C

Pitch :

0.025 0.64mm

Polarization Key :

POLARIZED HOUSING

Contact Style :

BELLOWED TYPE

Mount :

Surface Mount

Published :

2007

Contact Finish Thickness :

5.00μin 0.127μm

Pbfree Code :

No

Dielectric Withstanding Voltage :

500VAC V

Row Spacing :

5.79 mm

Contact Pattern :

RECTANGULAR

Feature :

Board Guide, Ground Bus (Plane)

Number Of PCB Rows :

2

Insulation Resistance :

2MOhm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mating Alignment :

Without

Rated Current (Signal) :

1A

Differential Signaling :

yes

Contact Finish :

Palladium-Nickel

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

ECCN Code :

EAR99

Length :

38.1mm

Orientation :

Vertical

PCB Contact Pattern :

RECTANGULAR

Number of Positions :

76

Packaging :

Tube

Sealable :

No

Contact Gender :

Male

Withdrawl Force-Min :

.139 N

Contact Current Rating :

11.5A

Operating Supply Voltage :

30V

PCB Thickness :

1.57mm

Width :

5.2832mm

ELV :

Compliant

DIN Conformance :

No

Contact Resistance :

10MOhm

Max Voltage Rating (AC) :

30V

Depth :

5.28mm

Flammability Rating :

UL94 V-0

Option :

GENERAL PURPOSE

MIL Conformance :

No

RoHS Status :

Non-RoHS Compliant

Contact Plating :

Gold, Lead, Nickel, Tin

Termination :

SMD/SMT

IEC Conformance :

No

Contact Finish Thickness - Mating :

120 nm

PCB Mount Alignment :

With

Mounting Type :

Surface Mount

Series :

MICTOR

Height Above Board :

0.251 6.38mm

Durability :

500 Cycles

Circuit Application :

Signal

Number of Columns :

38

Height :

6.5278mm
