767055-6
Or copy the link below:
- Mfr.Part #
- 767055-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 228POS EDGE MNT GOLD
- Stock
- 47,374
- In Stock ：
- 47,374
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Mixed Contacts :
- No
- Data Rate :
- 10 Gbps
- Stackable :
- No
- Circuit Application :
- Signal
- PCB Contact Pattern :
- RECTANGULAR
- Option :
- GENERAL PURPOSE
- Number of Columns :
- 114
- Flammability Rating :
- UL94 V-0
- Published :
- 2007
- Polarization Key :
- POLARIZED HOUSING
- Dielectric Withstanding Voltage :
- 500VAC V
- ELV :
- Compliant
- Connector Type :
- Plug, Outer Shroud Contacts
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- SMD/SMT
- PCB Thickness :
- 1.57mm
- Contact Finish :
- Gold
- Height :
- 6.3754mm
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- DIN Conformance :
- No
- IEC Conformance :
- No
- PCB Mount Retention :
- Without
- Contact Pattern :
- RECTANGULAR
- Row Spacing :
- 5.79 mm
- Pitch :
- 0.025 0.64mm
- Number of Positions :
- 228
- Reliability :
- COMMERCIAL
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Width :
- 5.2832mm
- Contact Gender :
- Male
- MIL Conformance :
- No
- Max Operating Temperature :
- 125°C
- Height Above Board :
- 0.251 6.38mm
- Operating Supply Voltage :
- 30V
- Differential Signaling :
- yes
- Series :
- MICTOR
- Color :
- Black
- Withdrawl Force-Min :
- .139 N
- Insulation Resistance :
- 2MOhm
- Number Of PCB Rows :
- 2
- Mounting Type :
- Board Edge, Straddle Mount
- Packaging :
- Tube
- Contact Current Rating :
- 11.5A
- Contact Resistance :
- 10MOhm
- Factory Lead Time :
- 25 Weeks
- Contact Finish Thickness - Mating :
- 120 nm
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Housing Material :
- Polymer
- Plating Thickness :
- 5μin
- Total Number of Contacts :
- 228
- Feature :
- Board Guide, Ground Bus (Plane)
- Filter Feature :
- No
- Number of Power Positions :
- 6
- Durability :
- 500 Cycles
- Length :
- 88.9mm
- Underplate Material :
- Nickel
- Reference Standard :
- UL
- RoHS Status :
- Non-RoHS Compliant
- Contact Style :
- BELLOWED TYPE
- Contact Plating :
- Gold, Lead, Nickel, Tin
- Min Operating Temperature :
- -55°C
- Number of Rows :
- 2
- Mount :
- Edge, Straddle Mount
- Number of Conductors :
- ONE
- Datasheets
- 767055-6

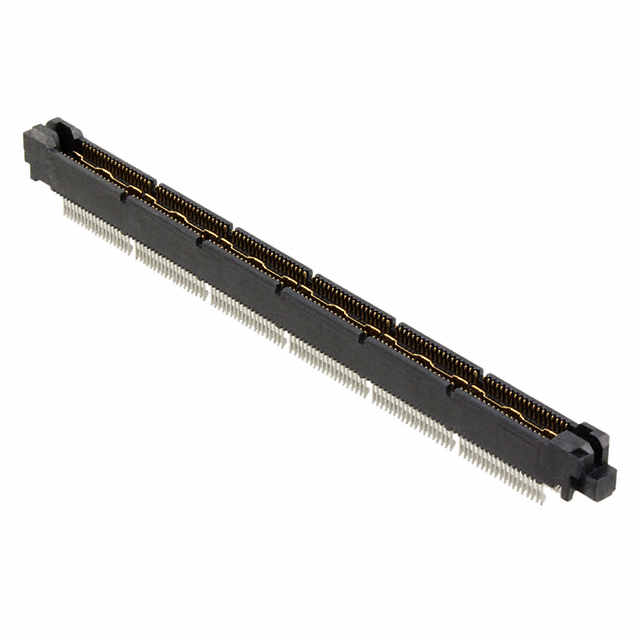

Plug, Outer Shroud Contacts Tube 2 Rows 0.025 0.64mm Board Edge, Straddle Mount 228 Positions MICTOR Gold SMD/SMT
767055-6 Overview
Currently, it is packaged in Plug, Outer Shroud Contacts.A Tube case is used to package the product.The mounting type of the device is Board Edge, Straddle Mount.A product of the MICTOR Series, it belongs to the range of products of that series.The operating system can be configured to maintain the value of Board Guide, Ground Bus (Plane) when it operates.Using a Edge, Straddle Mount socket is required in order to mount the item.A temperature below 125°C is best for using it.The device must run at -55°C degrees.As this device is suitable for the operation with a 30V supply, it should be used with that supply.
