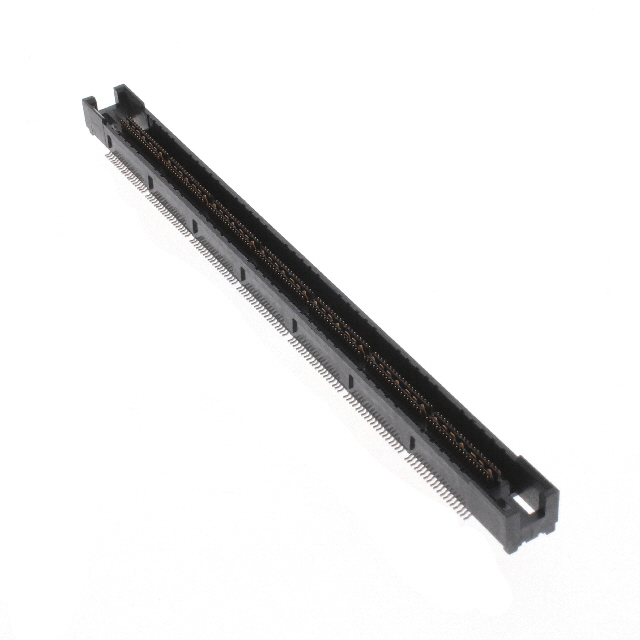

767054-7

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

RoHS Status :

Non-RoHS Compliant

Insulation Resistance :

2MOhm

Termination :

SMD/SMT

Contact Plating :

Gold, Lead, Nickel, Tin

Reference Standard :

UL

Stack Height :

12.57mm

Contact Finish :

Palladium-Nickel

Factory Lead Time :

25 Weeks

Stack Height (Mating) :

6.6mm 9mm 10.92mm 12.57mm 17.96mm 18.75mm 20mm 22.86mm

Pbfree Code :

No

Flammability Rating :

UL94 V-0

Mixed Contacts :

No

Mating Alignment :

With

Max Voltage Rating (AC) :

30V

Lifecycle Status :

ACTIVE (Last Updated: 23 hours ago)

Total Number of Contacts :

266

Length :

101.6mm

Contact Current Rating :

11.5A

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mount :

Surface Mount, Through Hole

Number of Rows :

2

MIL Conformance :

No

IEC Conformance :

No

Contact Gender :

FEMALE

Number of Conductors :

ONE

Width :

6.9mm

HTS Code :

8536.69.40.40

Series :

MICTOR

Dielectric Withstanding Voltage :

500VAC V

Withdrawl Force-Min :

.139 N

Contact Finish Thickness :

5.00μin 0.127μm

Pitch :

0.025 0.64mm

DIN Conformance :

No

JESD-609 Code :

e0

Number of Power Positions :

7

PCB Mount Retention :

Without

Number of Positions :

266

Data Rate :

10 Gbps

Color :

Black

Max Operating Temperature :

125°C

Published :

2007

Circuit Application :

Signal

Operating Supply Voltage :

30V

Polarization Key :

POLAR PIN POSITION

Height :

6.096mm

Option :

GENERAL PURPOSE

Number of Columns :

133

Reliability :

COMMERCIAL

Contact Pattern :

RECTANGULAR

Housing Material :

Polymer

Number Of PCB Rows :

2

Min Operating Temperature :

-55°C

ELV :

Compliant

Plating Thickness :

5μin

Feature :

Board Guide, Ground Bus (Plane)

Contact Finish Thickness - Mating :

127 nm

Differential Signaling :

yes

Packaging :

Tube

Mounting Type :

Surface Mount

Orientation :

Vertical

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Filter Feature :

No

Height Above Board :

0.236 6.00mm

ECCN Code :

EAR99

Durability :

500 Cycles

Sealable :

No

Contact Resistance :

10MOhm

PCB Contact Pattern :

RECTANGULAR

Underplate Material :

Nickel

Connector Type :

Receptacle, Center Strip Contacts
