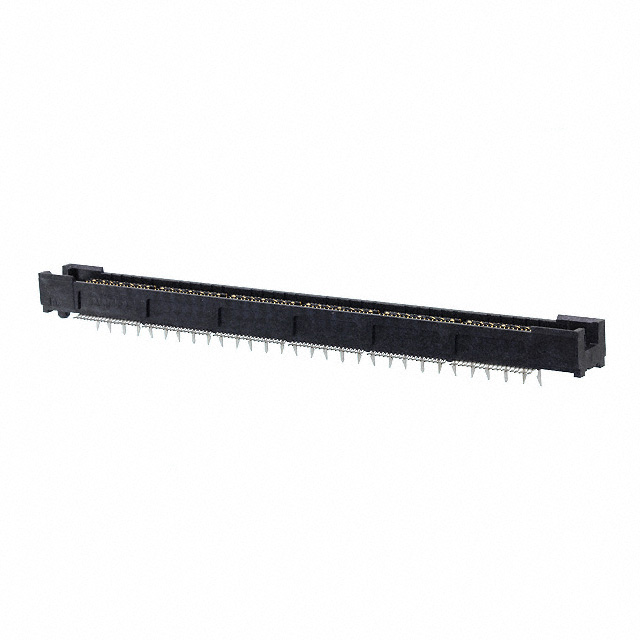

767054-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

PCB Contact Pattern :

RECTANGULAR

Number of Positions :

228

Filter Feature :

No

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Flammability Rating :

UL94 V-0

Height :

6.096mm

Operating Supply Voltage :

30V

Total Number of Contacts :

228

Dielectric Withstanding Voltage :

500VAC V

RoHS Status :

Non-RoHS Compliant

PCB Mount Alignment :

With

Factory Lead Time :

25 Weeks

Lead Free :

Contains Lead

Contact Finish Thickness :

5.00μin 0.127μm

Number Of PCB Rows :

2

IEC Conformance :

No

Mounting Type :

Surface Mount

Durability :

500 Cycles

Polarization Key :

POLAR PIN POSITION

Data Rate :

10 Gbps

ELV :

Compliant

Number of Columns :

114

Mount :

Surface Mount

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Sealable :

No

Max Operating Temperature :

125°C

Series :

MICTOR

Number of Conductors :

ONE

Packaging :

Tube

Plating Thickness :

5μin

MIL Conformance :

No

Feature :

Board Guide, Ground Bus (Plane)

Reliability :

COMMERCIAL

Reference Standard :

UL

Height Above Board :

0.236 6.00mm

PCB Thickness :

1.57mm

DIN Conformance :

No

Gender :

FEMALE

Insulation Resistance :

2MOhm

Underplate Material :

Nickel

Withdrawl Force-Min :

.139 N

JESD-609 Code :

e0

Connector Type :

Receptacle, Center Strip Contacts

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

No

Pitch :

0.025 0.64mm

Number of Power Positions :

6

Number of Rows :

2

Contact Current Rating :

11.5A

Orientation :

Vertical

Stack Height (Mating) :

6.6mm 9mm 10.92mm 12.57mm 17.96mm 18.75mm 20mm 22.86mm

Circuit Application :

Signal

Differential Signaling :

yes

Min Operating Temperature :

-55°C

Housing Material :

Polymer

Termination :

SMD/SMT

Contact Plating :

Gold

Length :

88.9mm

Contact Pattern :

RECTANGULAR

Row Spacing :

5.79 mm

Width :

6.9mm

Contact Finish :

Palladium-Nickel

Stack Height :

12.57mm

Published :

2007

Mating Alignment :

Without

Contact Finish Thickness - Mating :

120 nm

Option :

GENERAL PURPOSE

Contact Resistance :

10MOhm

Mixed Contacts :

No

Color :

Black
