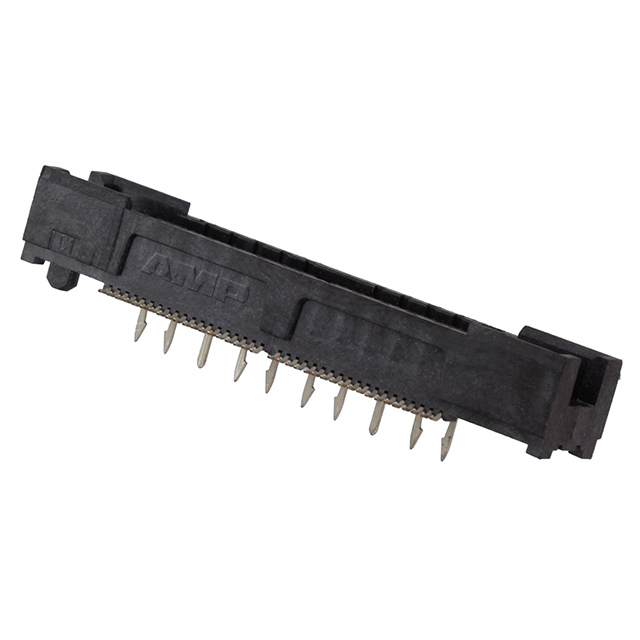

767054-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Mating Alignment :

Without

HTS Code :

8536.69.40.40

Row Spacing :

5.79 mm

DIN Conformance :

No

Factory Lead Time :

25 Weeks

Stack Height (Mating) :

6.6mm 9mm 10.92mm 12.57mm 17.96mm 18.75mm 20mm 22.86mm

Number of Conductors :

ONE

Flammability Rating :

UL94 V-0

Contact Finish Thickness :

5.00μin 0.127μm

Max Operating Temperature :

125°C

Published :

2007

Dielectric Withstanding Voltage :

500VAC V

Differential Signaling :

yes

Operating Supply Voltage :

30V

PCB Mount Alignment :

With

Length :

38.1mm

Series :

MICTOR

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Contact Plating :

Gold, Lead, Nickel, Tin

Gender :

FEMALE

PCB Thickness :

1.57mm

Pitch :

0.025 0.64mm

IEC Conformance :

No

Feature :

Board Guide, Ground Bus (Plane)

Connector Type :

Receptacle, Center Strip Contacts

Withdrawl Force-Min :

.139 N

Housing Material :

Polymer

Number of Columns :

38

Packaging :

Tube

Number of Rows :

2

Polarization Key :

POLAR PIN POSITION

Height :

6.096mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Color :

Black

Number Of PCB Rows :

2

Sealable :

No

Mounting Type :

Surface Mount

Pbfree Code :

No

Insulation Resistance :

2MOhm

ELV :

Non-Compliant

Width :

6.9mm

Plating Thickness :

5μin

PCB Contact Pattern :

RECTANGULAR

Orientation :

Vertical

RoHS Status :

Non-RoHS Compliant

MIL Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Total Number of Contacts :

76

Circuit Application :

Signal

Durability :

500 Cycles

Max Voltage Rating (AC) :

30V

Mixed Contacts :

No

Contact Finish :

Palladium-Nickel

Depth :

6.91mm

Reliability :

COMMERCIAL

Filter Feature :

No

Contact Resistance :

10MOhm

Contact Pattern :

RECTANGULAR

Height Above Board :

0.236 6.00mm

Option :

GENERAL PURPOSE

Reference Standard :

UL

Voltage - Rated DC :

30V

Number of Positions :

76

Data Rate :

10 Gbps

Min Operating Temperature :

-55°C

Contact Finish Thickness - Mating :

120 nm

Stack Height :

12.57mm

Contact Current Rating :

11.5A

Termination :

SMD/SMT

ECCN Code :

EAR99

Mount :

Surface Mount, Through Hole

Underplate Material :

Nickel
