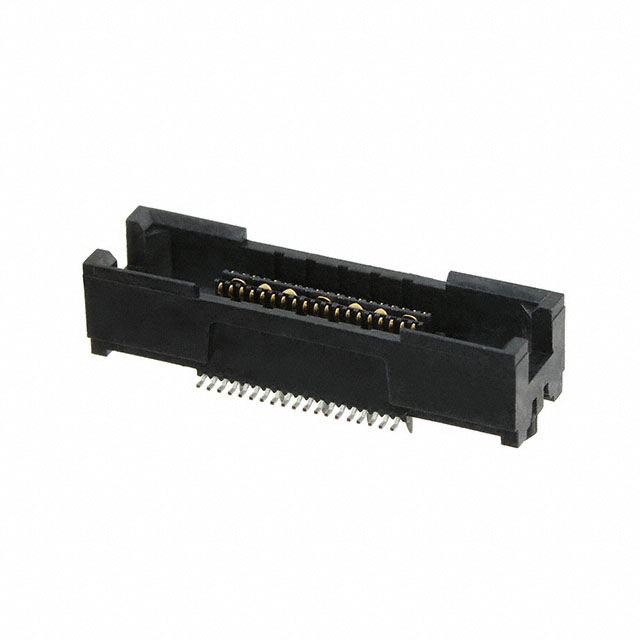

767054-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

38

Mounting Type :

Surface Mount

Pbfree Code :

No

Contact Finish Thickness - Mating :

120 nm

Sealable :

No

Withdrawl Force-Min :

.139 N

Operating Supply Voltage :

30V

Insulation Resistance :

2MOhm

Contact Plating :

Gold

Length :

25.4mm

MIL Conformance :

No

Board Mounting Option :

LOCATING POSTS

PCB Contact Pattern :

RECTANGULAR

Published :

2005

HTS Code :

8536.69.40.40

PCB Thickness :

1.57mm

Contact Finish :

Palladium-Nickel

Contact Material :

Copper

Orientation :

Vertical

Packaging :

Tube

Plating Thickness :

5μin

Connector Type :

Receptacle, Center Strip Contacts

Number Of PCB Rows :

2

Number of Conductors :

ONE

Circuit Application :

Signal

Total Number of Contacts :

38

ECCN Code :

EAR99

Reference Standard :

UL

IEC Conformance :

No

Mating Alignment :

Without

Lead Free :

Contains Lead

Gender :

Receptacle

Row Spacing :

5.79 mm

Series :

MICTOR

Contact Pattern :

RECTANGULAR

RoHS Status :

Non-RoHS Compliant

Stack Height (Mating) :

6.6mm 9mm 10.92mm 12.57mm 17.96mm 18.75mm 20mm 22.86mm

Factory Lead Time :

26 Weeks

Mixed Contacts :

No

PCB Mount Alignment :

With

Filter Feature :

No

Height Above Board :

0.236 6.00mm

Feature :

Board Guide, Ground Bus (Plane)

Number of Rows :

2

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Reliability :

COMMERCIAL

Contact Resistance :

10MOhm

Housing Material :

Plastic

Pitch :

0.025 0.64mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

DIN Conformance :

No

Width :

6.9mm

Contact Finish Thickness :

5.00μin 0.127μm

Stack Height :

6.6mm

Option :

GENERAL PURPOSE

Color :

Black

Polarization Key :

POLAR PIN POSITION

Operating Temperature (Min) :

-55°C

Durability :

500 Cycles

Dielectric Withstanding Voltage :

500VAC V
