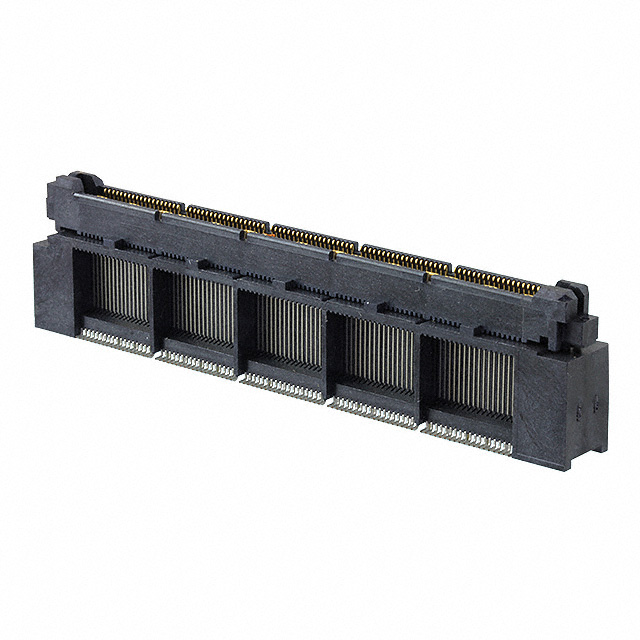

767042-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Gender :

Male

Filter Feature :

No

Max Operating Temperature :

125°C

PCB Thickness :

1.57mm

IEC Conformance :

No

Width :

8.128mm

Height Above Board :

0.727 18.47mm

Published :

1998

JESD-609 Code :

e0

Number of Columns :

95

Plating Thickness :

30μin

Rated Current (Signal) :

1A

Mounting Type :

Surface Mount

Stack Height (Mating) :

18.75mm 27.8mm

Height :

18.4658mm

Contact Current Rating :

11.5A

Polarization Key :

POLARIZED HOUSING

Contact Resistance :

10MOhm

Contact Finish :

Gold

Stack Height :

27.8mm

PCB Contact Pattern :

RECTANGULAR

Sealable :

No

Total Number of Contacts :

190

Row Spacing :

5.79 mm

DIN Conformance :

No

Contact Finish Thickness :

30.0μin 0.76μm

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Number of Conductors :

ONE

Pbfree Code :

No

Reliability :

COMMERCIAL

Connector Type :

Plug, Outer Shroud Contacts

Pitch :

0.025 0.64mm

Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Insulation Resistance :

2MOhm

Feature :

Board Guide, Ground Bus (Plane)

Mount :

Surface Mount

Termination :

SMD/SMT

Differential Signaling :

yes

Option :

GENERAL PURPOSE

RoHS Status :

Non-RoHS Compliant

Number Of PCB Rows :

2

Color :

Black

Underplate Material :

Nickel

Orientation :

Vertical

Additional Feature :

STACKING HEIGHT=0.738 INCH

ECCN Code :

EAR99

Contact Finish Thickness - Mating :

760 nm

Contact Pattern :

RECTANGULAR

Packaging :

Tube

Number of Positions :

190

MIL Conformance :

No

Housing Material :

Polymer

Mixed Contacts :

No

Min Operating Temperature :

-55°C

Number of Rows :

2

Number of Power Positions :

5

PCB Mount Alignment :

With

Mating Alignment :

Without

Operating Supply Voltage :

30V

Factory Lead Time :

15 Weeks

Data Rate :

10 Gbps

Reference Standard :

UL

Length :

76.2mm

Withdrawl Force-Min :

.139 N

Circuit Application :

Signal

Contact Style :

BELLOWED TYPE

Series :

MICTOR
