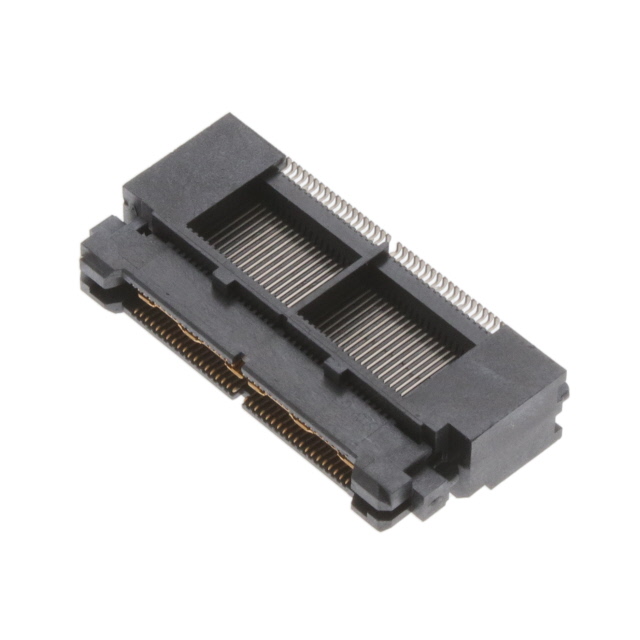

767042-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Published :

2007

Contact Current Rating :

11.5A

Pbfree Code :

No

RoHS Status :

Non-RoHS Compliant

Option :

GENERAL PURPOSE

Mating Alignment :

With

Packaging :

Tube

Termination :

SMD/SMT

Circuit Application :

Signal

Max Operating Temperature :

125°C

Max Voltage Rating (AC) :

30V

Height Above Board :

0.727 18.47mm

Number of Positions :

76

Feature :

Board Guide, Ground Bus (Plane)

Number of Columns :

38

Color :

Black

IEC Conformance :

No

Insulation Resistance :

2MOhm

Operating Supply Voltage :

30V

Sealable :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Gender :

Male

Height :

18.4658mm

Mount :

Surface Mount

Contact Resistance :

10MOhm

Differential Signaling :

yes

Width :

8.128mm

Pitch :

0.025 0.64mm

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Flammability Rating :

UL94 V-0

Total Number of Contacts :

76

Depth :

8.13mm

Contact Finish Thickness - Mating :

762 nm

ECCN Code :

EAR99

Filter Feature :

No

Number of Rows :

2

Mounting Type :

Surface Mount

MIL Conformance :

No

Orientation :

Vertical

Contact Plating :

Gold, Lead, Nickel, Tin

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Factory Lead Time :

13 Weeks

Connector Type :

Plug, Outer Shroud Contacts

Contact Finish Thickness :

30.0μin 0.76μm

Stack Height (Mating) :

18.75mm 27.8mm

Data Rate :

10 Gbps

DIN Conformance :

No

Underplate Material :

Nickel

Min Operating Temperature :

-55°C

HTS Code :

8536.69.40.40

Contact Finish :

Gold

Length :

38.1mm

Series :

MICTOR

Housing Material :

Polymer

PCB Mount Retention :

Without

Stack Height :

27.8mm

Mixed Contacts :

No
