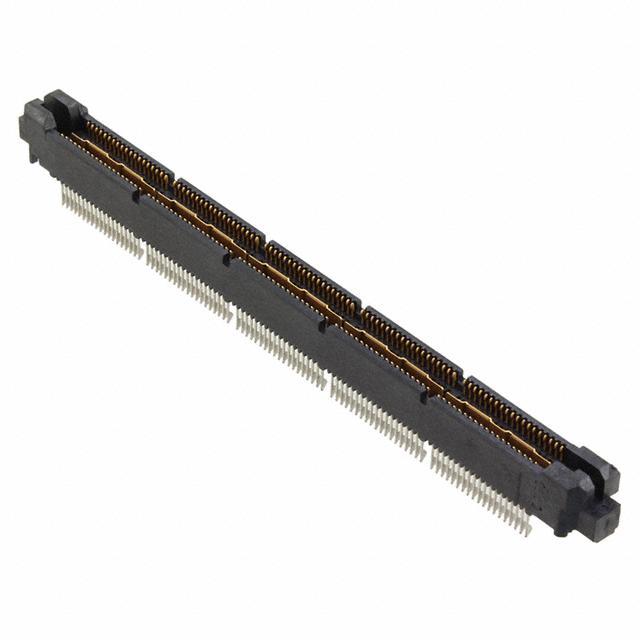

767039-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Circuit Application :

Signal

Max Voltage Rating (AC) :

30V

Factory Lead Time :

14 Weeks

Contact Style :

BELLOWED TYPE

Published :

2007

Contact Finish Thickness - Mating :

120 nm

Width :

5.2832mm

Differential Signaling :

yes

Max Operating Temperature :

125°C

Mixed Contacts :

No

Orientation :

Straight

Number of Columns :

95

Feature :

Board Guide, Ground Bus (Plane)

RoHS Status :

Non-RoHS Compliant

Total Number of Contacts :

190

ELV :

Compliant

Reliability :

COMMERCIAL

Number of Positions :

190

Stackable :

No

Min Operating Temperature :

-55°C

Length :

76.2mm

Contact Pattern :

RECTANGULAR

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Packaging :

Tube

PCB Contact Pattern :

RECTANGULAR

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Row Spacing :

5.79 mm

Number of Rows :

2

Underplate Material :

Nickel

Height Above Board :

0.251 6.38mm

Insulation Resistance :

2MOhm

Color :

Black

DIN Conformance :

No

Housing Material :

Polymer

Number Of PCB Rows :

2

Contact Finish :

Gold

Height :

6.3754mm

PCB Thickness :

23.368mm

Pitch :

0.025 0.64mm

Depth :

6.38mm

MIL Conformance :

No

Mounting Type :

Board Edge, Straddle Mount

Option :

GENERAL PURPOSE

Polarization Key :

POLARIZED HOUSING

Number of Conductors :

ONE

Data Rate :

10 Gbps

Series :

MICTOR

Contact Current Rating :

11.5A

Flammability Rating :

UL94 V-0

Reference Standard :

UL

Operating Supply Voltage :

30V

PCB Mount Retention :

Without

Number of Power Positions :

5

Gender :

Male

Mount :

Edge, Straddle Mount

Contact Finish Thickness :

30.0μin 0.76μm

IEC Conformance :

No

Withdrawl Force-Min :

.139 N

Termination :

SMD/SMT

Connector Type :

Plug, Outer Shroud Contacts

Filter Feature :

No

Contact Resistance :

10MOhm
