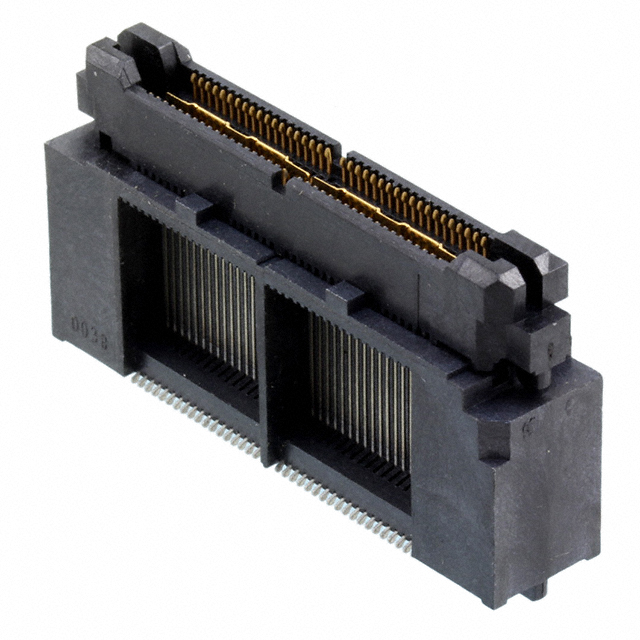

767032-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Height :

19.812mm

Contact Pattern :

RECTANGULAR

Mixed Contacts :

No

Contact Finish :

Gold

Reliability :

COMMERCIAL

IEC Conformance :

No

Additional Feature :

STACKING HEIGHT=0.788 INCH

Number of Conductors :

ONE

Flammability Rating :

UL94 V-0

Contact Current Rating :

11.5A

Housing Material :

Polymer

Sealable :

No

Feature :

Board Guide, Ground Bus (Plane)

DIN Conformance :

No

Plating Thickness :

30μin

Contact Gender :

Male

Mounting Type :

Surface Mount

Operating Supply Voltage :

30V

Width :

8.128mm

Reference Standard :

UL

RoHS Status :

Non-RoHS Compliant

Withdrawl Force-Min :

.139 N

Dielectric Withstanding Voltage :

500VAC V

PCB Thickness :

1.57mm

Filter Feature :

No

Number of Columns :

38

PCB Contact Pattern :

RECTANGULAR

Circuit Application :

Signal

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Total Number of Contacts :

76

Packaging :

Tube

Mount :

Surface Mount

Differential Signaling :

yes

Mating Alignment :

Without

PCB Mount Alignment :

With

Factory Lead Time :

25 Weeks

Orientation :

Vertical

Height Above Board :

0.780 19.81mm

Length :

38.1mm

Data Rate :

10 Gbps

Contact Finish Thickness - Mating :

760 nm

Polarization Key :

POLARIZED HOUSING

Connector Type :

Plug, Outer Shroud Contacts

Published :

2007

Series :

MICTOR

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Pitch :

0.025 0.64mm

Stack Height (Mating) :

20mm 29mm

Row Spacing :

5.79 mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Style :

BELLOWED TYPE

Number of Rows :

2

Underplate Material :

Nickel

Number of Positions :

76

ELV :

Compliant

Number Of PCB Rows :

2

Option :

GENERAL PURPOSE

Contact Finish Thickness :

30.0μin 0.76μm

Contact Resistance :

10MOhm

Min Operating Temperature :

-55°C

Insulation Resistance :

2MOhm

Color :

Black

Max Operating Temperature :

125°C

Stack Height :

29mm

Termination :

SMD/SMT

MIL Conformance :

No

Rated Current (Signal) :

1A
