767025-5

Share

Or copy the link below:

Mfr.Part #
767025-5
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN PLUG 190POS SMD GOLD
Stock
27,267
In Stock :
27,267

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Arrays, Edge Type, Mezzanine (Board to Board)
Max Operating Temperature :
125°C
Mixed Contacts :
No
Stack Height (Mating) :
17.96mm 27mm
Termination :
SMD/SMT
Sealable :
No
Rated Current (Signal) :
1A
Packaging :
Tube
Underplate Material :
Nickel
Plating Thickness :
30μin
Color :
Black
Mounting Type :
Surface Mount
Pbfree Code :
No
PCB Mount Alignment :
With
PCB Contact Pattern :
RECTANGULAR
Insulation Resistance :
2MOhm
Height Above Board :
0.699 17.75mm
Housing Material :
Polymer
Operating Supply Voltage :
30V
Max Voltage Rating (AC) :
30V
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Withdrawl Force-Min :
.139 N
Min Operating Temperature :
-55°C
Row Spacing :
5.79 mm
Connector Type :
Plug, Outer Shroud Contacts
Contact Finish Thickness :
30.0μin 0.76μm
Height :
17.7546mm
DIN Conformance :
No
Mount :
Surface Mount, Through Hole
Number of Rows :
2
Body Depth :
0.701 inch
Factory Lead Time :
13 Weeks
Number of Power Positions :
5
Contact Current Rating :
11.5A
Total Number of Contacts :
190
Contact Finish Thickness - Mating :
760 nm
Contact Finish :
Gold
Circuit Application :
Signal
ECCN Code :
EAR99
Flammability Rating :
UL94 V-0
Reliability :
COMMERCIAL
Contact Pattern :
RECTANGULAR
Contact Resistance :
10MOhm
PCB Thickness :
1.57mm
Stack Height :
17.96mm
Number of Columns :
95
Reference Standard :
UL
Orientation :
Vertical
Option :
GENERAL PURPOSE
Contact Gender :
Male
Length :
76.2mm
Published :
2005
Number of Conductors :
ONE
Differential Signaling :
yes
Contact Plating :
Gold, Lead, Nickel, Tin
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Contact Style :
BELLOWED TYPE
Mating Alignment :
Without
MIL Conformance :
No
RoHS Status :
Non-RoHS Compliant
Lifecycle Status :
ACTIVE (Last Updated: 3 days ago)
Polarization Key :
POLARIZED HOUSING
Width :
8.128mm
Number Of PCB Rows :
2
Series :
MICTOR
Filter Feature :
No
Pitch :
0.025 0.64mm
Number of Positions :
190
IEC Conformance :
No
Data Rate :
10 Gbps
Feature :
Board Guide, Ground Bus (Plane)
Datasheets
767025-5
Introducing Arrays, Edge Type, Mezzanine (Board to Board) TE Connectivity AMP Connectors 767025-5 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Surface Mount, 767025-5 pinout, 767025-5 datasheet PDF, 767025-5 amp .Beyond Arrays, Edge Type, Mezzanine (Board to Board) TE Connectivity AMP Connectors 767025-5 ,we also offer 5054761010, 5035481222, AXT510124, Our vast inventory has you covered. Contact us now for immediate solutions.

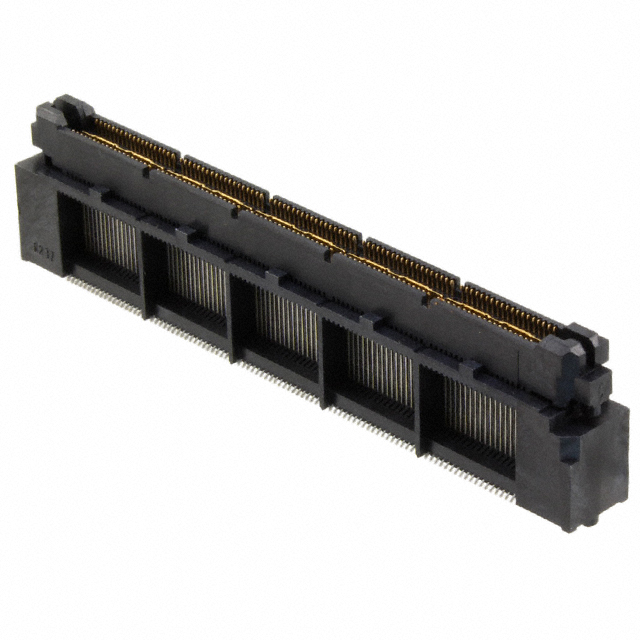

TE Connectivity AMP Connectors 767025-5


Plug, Outer Shroud Contacts Tube 2 Rows 0.025 0.64mm Surface Mount 190 Positions MICTOR Gold SMD/SMT

767025-5 Overview


A Plug, Outer Shroud Contacts package is included with it.Packaging is performed using a Tube case.Its mounting type is Surface Mount.It is part of the MICTOR Series of products.In operation, Board Guide, Ground Bus (Plane) may be maintained.If you wish to mount this part, you will need to use a Surface Mount, Through Hole socket.Whenever it's below 125°C, it's best to use it.The device must operate at a temperature of -55°C at all times.The device is capable of operating with a 30V supply, so it is suitable for this application.
