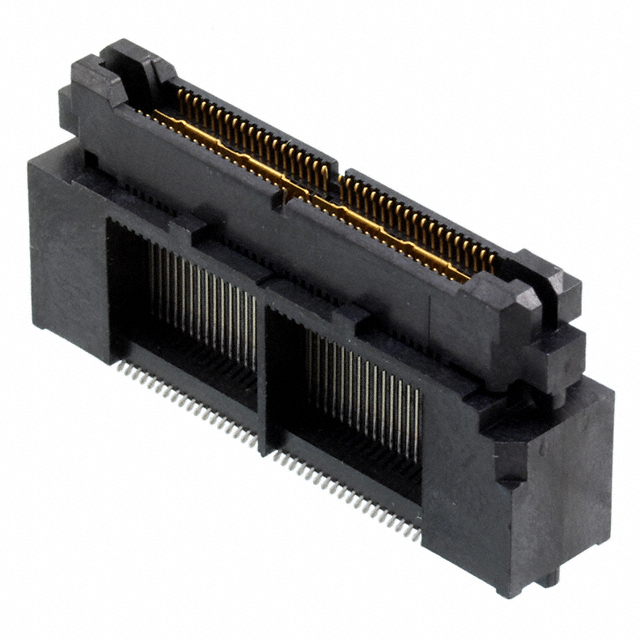

767025-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Filter Feature :

No

Housing Material :

Polymer

Contact Finish :

Gold

Orientation :

Vertical

PCB Mount Alignment :

With

Height Above Board :

0.699 17.75mm

Stack Height (Mating) :

17.96mm 27mm

Total Number of Contacts :

76

Polarization Key :

POLARIZED HOUSING

Number of Columns :

38

Contact Plating :

Gold, Lead, Nickel, Tin

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Operating Supply Voltage :

30V

Mounting Type :

Surface Mount

Insulation Resistance :

2MOhm

Color :

Black

Withdrawl Force-Min :

.139 N

PCB Contact Pattern :

RECTANGULAR

PCB Thickness :

1.57mm

Termination :

SMD/SMT

Connector Type :

Plug, Outer Shroud Contacts

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Reference Standard :

UL

MIL Conformance :

No

Height :

17.7546mm

Published :

2007

Contact Gender :

Male

ELV :

Compliant

Feature :

Board Guide, Ground Bus (Plane)

Series :

MICTOR

RoHS Status :

Non-RoHS Compliant

Sealable :

No

Contact Current Rating :

11.5A

Contact Finish Thickness - Mating :

760 nm

HTS Code :

8536.69.40.40

ECCN Code :

EAR99

Row Spacing :

5.79 mm

Stack Height :

17.96mm

Number of Positions :

76

Mating Alignment :

Without

Plating Thickness :

30μin

Max Operating Temperature :

125°C

Contact Finish Thickness :

30.0μin 0.76μm

Rated Current (Signal) :

1A

IEC Conformance :

No

Contact Style :

BELLOWED TYPE

Pbfree Code :

No

Body Depth :

0.701 inch

Mount :

Surface Mount

Min Operating Temperature :

-55°C

Width :

8.128mm

Number Of PCB Rows :

2

Mixed Contacts :

No

Factory Lead Time :

25 Weeks

Circuit Application :

Signal

Underplate Material :

Nickel

Pitch :

0.025 0.64mm

Flammability Rating :

UL94 V-0

Contact Resistance :

10MOhm

Dielectric Withstanding Voltage :

500VAC V

Packaging :

Tube

Differential Signaling :

yes

Number of Rows :

2

Number of Conductors :

ONE

Data Rate :

10 Gbps

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

DIN Conformance :

No

Length :

38.1mm

Contact Pattern :

RECTANGULAR
