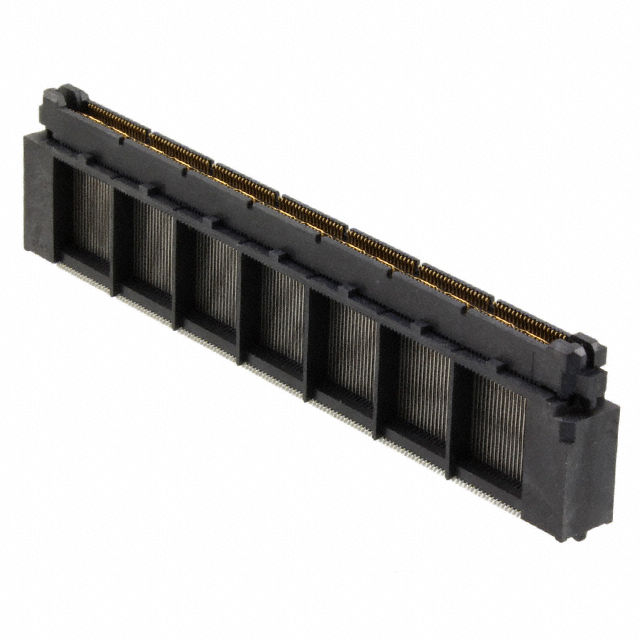

767017-7
Or copy the link below:
- Mfr.Part #
- 767017-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 266POS SMD GOLD
- Stock
- 36,881
- In Stock ：
- 36,881
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Mount :
- Surface Mount
- Sealable :
- No
- Color :
- Black
- Height :
- 22.6568mm
- PCB Contact Pattern :
- RECTANGULAR
- Number of Rows :
- 2
- Reliability :
- COMMERCIAL
- Height Above Board :
- 0.892 22.66mm
- Number of Positions :
- 266
- Contact Resistance :
- 10MOhm
- Series :
- MICTOR
- Stack Height :
- 22.86mm
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Reference Standard :
- UL
- Contact Pattern :
- RECTANGULAR
- Factory Lead Time :
- 27 Weeks
- Termination :
- SMD/SMT
- Option :
- GENERAL PURPOSE
- Operating Supply Voltage :
- 30V
- Dielectric Withstanding Voltage :
- 500VAC V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish Thickness - Mating :
- 760 nm
- Connector Type :
- Plug, Outer Shroud Contacts
- Packaging :
- Tube
- Max Operating Temperature :
- 125°C
- Data Rate :
- 10 Gbps
- Row Spacing :
- 5.79 mm
- Withdrawl Force-Min :
- .139 N
- Mating Alignment :
- Without
- Contact Current Rating :
- 11.5A
- Polarization Key :
- POLARIZED HOUSING
- Min Operating Temperature :
- -55°C
- Differential Signaling :
- yes
- Insulation Resistance :
- 2MOhm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- PCB Thickness :
- 1.57mm
- Body Depth :
- 0.894 inch
- Published :
- 2004
- Stack Height (Mating) :
- 22.86mm 31.9mm
- Circuit Application :
- Signal
- RoHS Status :
- Non-RoHS Compliant
- Contact Plating :
- Gold, Lead, Nickel, Tin
- Rated Current (Signal) :
- 1A
- Number of Columns :
- 133
- Contact Style :
- BELLOWED TYPE
- Contact Gender :
- Male
- Contact Finish :
- Gold
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Number of Conductors :
- ONE
- DIN Conformance :
- No
- Length :
- 101.6mm
- IEC Conformance :
- No
- Housing Material :
- Polymer
- Mixed Contacts :
- No
- Filter Feature :
- No
- ELV :
- Compliant
- Flammability Rating :
- UL94 V-0
- Mounting Type :
- Surface Mount
- Pitch :
- 0.025 0.64mm
- Feature :
- Board Guide, Ground Bus (Plane)
- Number of Power Positions :
- 7
- Plating Thickness :
- 30μin
- Number Of PCB Rows :
- 2
- Pbfree Code :
- No
- PCB Mount Alignment :
- With
- Orientation :
- Vertical
- Width :
- 8.128mm
- Total Number of Contacts :
- 266
- Underplate Material :
- Nickel
- MIL Conformance :
- No
- Datasheets
- 767017-7
Plug, Outer Shroud Contacts Tube 2 Rows 0.025 0.64mm Surface Mount 266 Positions MICTOR Gold SMD/SMT
767017-7 Overview
Packaging is in the form of Plug, Outer Shroud Contacts.An orange Tube case is used to package the product.This device has a Surface Mount mounting type.Specifically, it is one of the products in the MICTOR Series.In operation, Board Guide, Ground Bus (Plane) can be maintained as long as Board Guide, Ground Bus (Plane) is unchanged.A Surface Mount socket is required for the mounting of this part.If the temperature is below 125°C, it's best to use it.-55°C is the minimum temperature for this device.This device can be used with a 30V supply, as it is designed for that operation.
