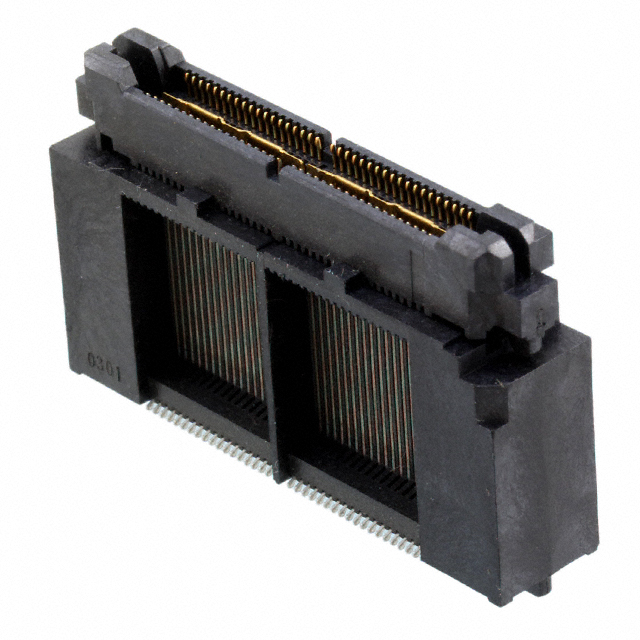

767017-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Number of Columns :

38

Withdrawl Force-Min :

.139 N

Number of Conductors :

ONE

Max Operating Temperature :

125°C

Circuit Application :

Signal

Dielectric Withstanding Voltage :

500VAC V

Contact Finish Thickness :

30.0μin 0.76μm

PCB Contact Pattern :

RECTANGULAR

Operating Supply Voltage :

30V

Series :

MICTOR

Contact Current Rating :

11.5A

Mixed Contacts :

No

Height Above Board :

0.892 22.66mm

DIN Conformance :

No

Max Voltage Rating (AC) :

30V

Flammability Rating :

UL94 V-0

Factory Lead Time :

25 Weeks

Contact Gender :

Male

Sealable :

No

Mounting Type :

Surface Mount

Contact Resistance :

10MOhm

Data Rate :

10 Gbps

Contact Style :

BELLOWED TYPE

Width :

8.128mm

Number of Positions :

76

Underplate Material :

Nickel

Contact Finish :

Gold

ELV :

Compliant

Stack Height :

22.86mm

PCB Thickness :

1.57mm

Feature :

Board Guide, Ground Bus (Plane)

Contact Plating :

Gold, Lead, Nickel, Tin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Height :

22.6568mm

Plating Thickness :

30μin

PCB Mount Alignment :

With

Orientation :

Vertical

Color :

Black

Reliability :

COMMERCIAL

Number Of PCB Rows :

2

Depth :

8.13mm

Published :

2007

IEC Conformance :

No

Insulation Resistance :

2MOhm

Option :

GENERAL PURPOSE

Rated Current (Signal) :

1A

Contact Pattern :

RECTANGULAR

Stack Height (Mating) :

22.86mm 31.9mm

Number of Rows :

2

Termination :

SMD/SMT

Pitch :

0.025 0.64mm

Row Spacing :

5.79 mm

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mating Alignment :

Without

Connector Type :

Plug, Outer Shroud Contacts

Filter Feature :

No

Contact Finish Thickness - Mating :

760 nm

Mount :

Surface Mount

Reference Standard :

UL

MIL Conformance :

No

Differential Signaling :

yes

Total Number of Contacts :

76

Length :

38.1mm

Housing Material :

Polymer

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Polarization Key :

POLARIZED HOUSING

RoHS Status :

Non-RoHS Compliant

Packaging :

Tube

Pbfree Code :

No

Min Operating Temperature :

-55°C
