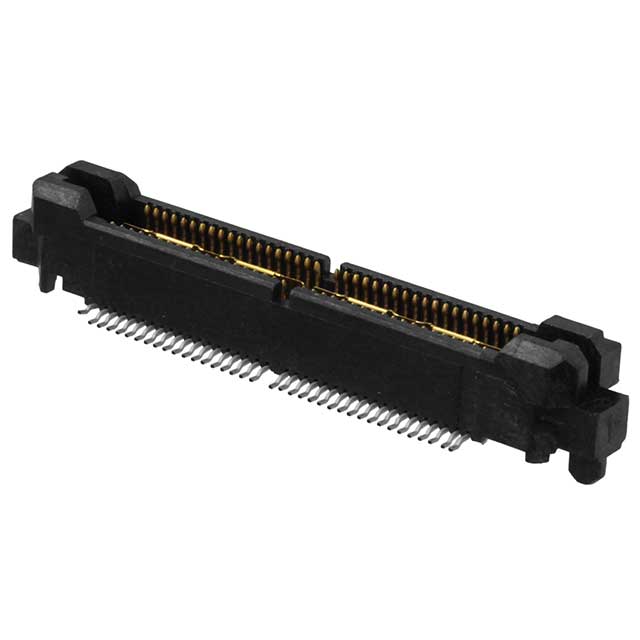

767007-9

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Max Operating Temperature :

125°C

Mating Alignment :

Without

Reference Standard :

UL

Number Of PCB Rows :

2

Color :

Black

Number of Positions :

76

Series :

MICTOR

Withdrawl Force-Min :

.139 N

IEC Conformance :

No

Number of Rows :

2

Termination :

SMD/SMT

Differential Signaling :

yes

Contact Finish Thickness - Mating :

760 nm

Feature :

Board Guide, Ground Bus (Plane)

PCB Contact Pattern :

RECTANGULAR

Row Spacing :

5.79 mm

Housing Material :

Polymer

Polarization Key :

POLARIZED HOUSING

Underplate Material :

Nickel

Contact Current Rating :

11.5A

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Published :

2007

Data Rate :

10 Gbps

Stack Height :

15.621mm

Mounting Type :

Surface Mount

PCB Thickness :

1.57mm

HTS Code :

8536.69.40.40

Mount :

Surface Mount

Length :

38.1mm

Width :

5.2832mm

ECCN Code :

EAR99

Plating Thickness :

30μin

Contact Resistance :

10MOhm

PCB Mount Alignment :

With

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Lead Free :

Lead Free

Number of Conductors :

ONE

Gender :

Male

Contact Style :

BELLOWED TYPE

Option :

GENERAL PURPOSE

Pitch :

0.025 0.64mm

Number of Columns :

38

Dielectric Withstanding Voltage :

500VAC V

Insulation Resistance :

2MOhm

Packaging :

Tube

Connector Type :

Plug, Outer Shroud Contacts

Sealable :

No

Contact Finish Thickness :

30.0μin 0.76μm

Reliability :

COMMERCIAL

Mixed Contacts :

No

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Circuit Application :

Signal

Contact Pattern :

RECTANGULAR

JESD-609 Code :

e0

Height :

6.5278mm

Operating Supply Voltage :

30V

Factory Lead Time :

26 Weeks

Pbfree Code :

No

Orientation :

Vertical

Height Above Board :

0.251 6.38mm

Stack Height (Mating) :

6.6mm 15.62mm

Contact Finish :

Gold

Total Number of Contacts :

76

ELV :

Non-Compliant

Rated Current (Signal) :

1A

Lead Pitch :

635μm

Min Operating Temperature :

-55°C

Filter Feature :

No

RoHS Status :

Non-RoHS Compliant

Flammability Rating :

UL94 V-0

DIN Conformance :

No
