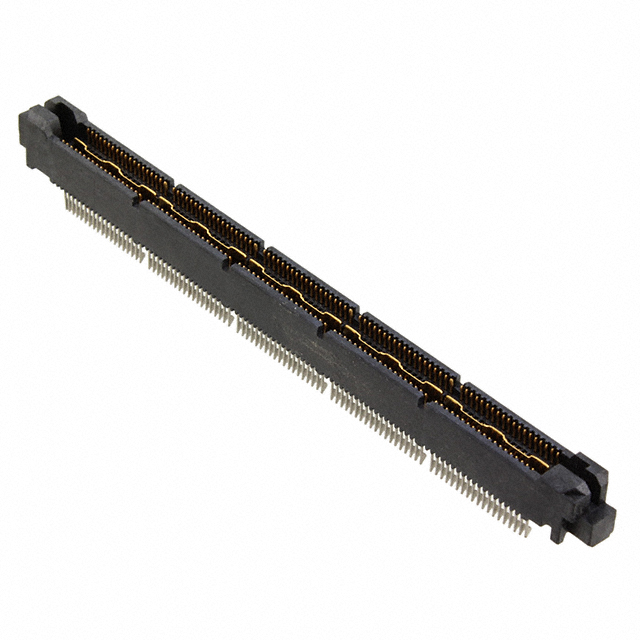

767006-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Plating Thickness :

30μin

Connector Type :

Plug, Outer Shroud Contacts

Contact Finish :

Gold

PCB Contact Pattern :

RECTANGULAR

Filter Feature :

No

Number of Positions :

190

Number Of PCB Rows :

2

Contact Resistance :

10MOhm

Contact Pattern :

RECTANGULAR

Row Spacing :

5.79 mm

ELV :

Compliant

Number of Power Positions :

5

Polarization Key :

POLARIZED HOUSING

Height :

6.3754mm

Mounting Type :

Board Edge, Straddle Mount

IEC Conformance :

No

Number of Conductors :

ONE

Operating Supply Voltage :

30V

PCB Thickness :

1.57mm

Number of Rows :

2

DIN Conformance :

No

Stackable :

No

Underplate Material :

Nickel

Packaging :

Tube

RoHS Status :

Non-RoHS Compliant

Reliability :

COMMERCIAL

Flammability Rating :

UL94 V-0

Contact Style :

BELLOWED TYPE

Feature :

Board Guide, Ground Bus (Plane)

Gender :

Male

Housing Material :

Polymer

Withdrawl Force-Min :

.139 N

Mount :

Edge, Straddle Mount

Depth :

5.28mm

Contact Finish Thickness - Mating :

760 nm

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Data Rate :

10 Gbps

Published :

2007

Reference Standard :

UL

Voltage - Rated DC :

30V

PCB Mount Retention :

Without

Contact Finish Thickness :

30.0μin 0.76μm

Min Operating Temperature :

-55°C

Total Number of Contacts :

190

Differential Signaling :

yes

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Height Above Board :

0.251 6.38mm

Length :

76.2mm

Termination :

SMD/SMT

MIL Conformance :

No

Pitch :

0.025 0.64mm

Orientation :

Straight

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Color :

Black

Factory Lead Time :

25 Weeks

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Circuit Application :

Signal

Number of Columns :

95

Width :

5.2832mm

Max Operating Temperature :

125°C

Insulation Resistance :

2MOhm

Series :

MICTOR

Max Voltage Rating (AC) :

30V

Contact Current Rating :

11.5A
