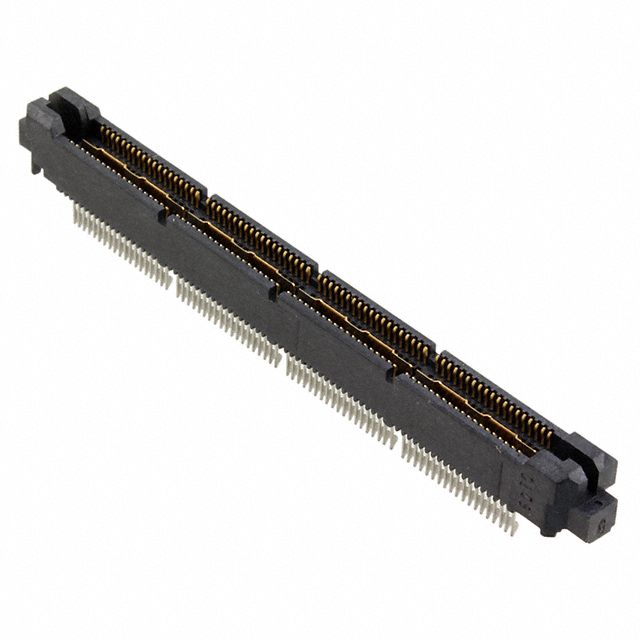

767006-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Dielectric Withstanding Voltage :

500VAC V

DIN Conformance :

No

HTS Code :

8536.69.40.40

Contact Finish Thickness :

30.0μin 0.76μm

Lifecycle Status :

ACTIVE (Last Updated: 22 hours ago)

Color :

Black

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Pattern :

RECTANGULAR

Published :

2007

Number of Positions :

152

Height Above Board :

0.251 6.38mm

Contact Finish :

Gold

RoHS Status :

Non-RoHS Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Plating Thickness :

30μin

Number of Rows :

2

MIL Conformance :

No

Feature :

Board Guide, Ground Bus (Plane)

Series :

MICTOR

Width :

5.2832mm

Orientation :

Straight

Option :

GENERAL PURPOSE

Packaging :

Tube

Factory Lead Time :

25 Weeks

Number Of PCB Rows :

2

Insulation Resistance :

2MOhm

Pitch :

0.025 0.64mm

Mounting Type :

Board Edge, Straddle Mount

IEC Conformance :

No

Contact Finish Thickness - Mating :

762 nm

Number of Conductors :

ONE

Depth :

5.28mm

Connector Type :

Plug, Outer Shroud Contacts

Circuit Application :

Signal

Contact Resistance :

10MOhm

Termination :

Solder

Length :

63.5mm

Flammability Rating :

UL94 V-0

PCB Contact Pattern :

RECTANGULAR

ELV :

Compliant

Reliability :

COMMERCIAL

Total Number of Contacts :

152

PCB Mount Alignment :

Without

Withdrawl Force-Min :

.139 N

Mating Alignment :

With

Sealable :

No

Housing Material :

Polymer

Filter Feature :

No

Reference Standard :

UL

Contact Style :

BELLOWED TYPE

Mount :

Edge, Straddle Mount

Min Operating Temperature :

-55°C

Max Operating Temperature :

125°C

Max Voltage Rating (AC) :

30V

Polarization Key :

POLARIZED HOUSING

ECCN Code :

EAR99

Contact Gender :

Male

Mixed Contacts :

No

Operating Supply Voltage :

30V
