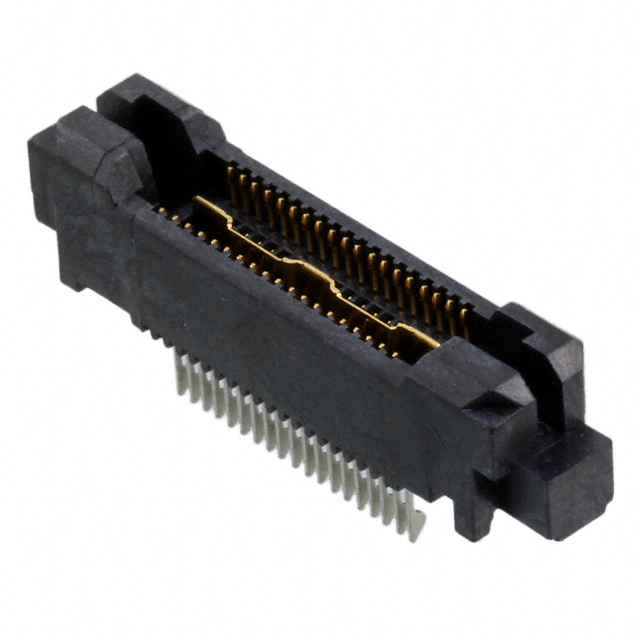

767006-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Width :

5.2832mm

Number of Positions :

38

PCB Contact Pattern :

RECTANGULAR

Termination :

Solder

PCB Thickness :

1.57mm

Height Above Board :

0.251 6.38mm

Orientation :

Straight

Published :

2007

Max Voltage Rating (AC) :

30V

Insulation Resistance :

2MOhm

Withdrawl Force-Min :

.139 N

Length :

25.4mm

Pitch :

0.025 0.64mm

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Color :

Black

Connector Type :

Plug, Outer Shroud Contacts

Mount :

Edge, Straddle Mount

HTS Code :

8536.69.40.40

Radiation Hardening :

No

Polarization Key :

POLARIZED HOUSING

Mounting Type :

Board Edge, Straddle Mount

Contact Gender :

Male

IEC Conformance :

No

Option :

GENERAL PURPOSE

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Filter Feature :

No

Contact Finish :

Gold

Total Number of Contacts :

38

Reliability :

COMMERCIAL

RoHS Status :

Non-RoHS Compliant

Plating Thickness :

30μin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish Thickness - Mating :

760 nm

MIL Conformance :

No

Dielectric Withstanding Voltage :

500VAC V

Contact Resistance :

10MOhm

Number of Conductors :

ONE

Packaging :

Tube

Contact Pattern :

RECTANGULAR

Operating Supply Voltage :

30V

Min Operating Temperature :

-55°C

ECCN Code :

EAR99

Row Spacing :

5.79 mm

Number Of PCB Rows :

2

Number of Rows :

2

DIN Conformance :

No

Series :

MICTOR

Circuit Application :

Signal

Max Operating Temperature :

125°C

Mixed Contacts :

No

PCB Mount Retention :

Without

Reference Standard :

UL

Feature :

Board Guide, Ground Bus (Plane)

Factory Lead Time :

22 Weeks

Depth :

9.91mm

Housing Material :

Polymer

Contact Finish Thickness :

30.0μin 0.76μm

Contact Style :

BELLOWED TYPE
