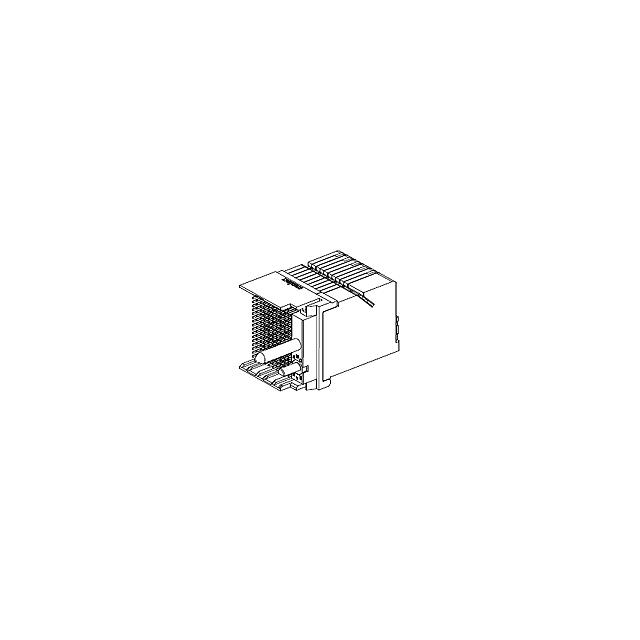

76560-5108

Manufacturer :

Molex

Product Category :

Specialized

Product Length :

26.6 mm

Current Rating (Max) :

0.75/Contact(A)

Termination Method :

Press Fit

Material Flammability Rating :

UL94 V-0

Factory Lead Time :

11 Weeks

Mounting Type :

Board Edge, Through Hole, Right Angle

Gender :

Header

Package :

Box

Mounting Style :

Through Hole

Pin Count :

180

Current Rating (Amps) :

-

Body Orientation :

RIGHT ANGLE

Product Status :

Active

Operating Temp Range :

-55C to 85C

Number of Contacts :

180(POS)

Connector Style :

Impact, Guide Right

Mounting :

Through Hole

Contact Material :

Tin

Number of Contact Rows :

18

Number of Positions :

180 Position

Tradename :

Impact

Termination :

Press-Fit

ECCN Code :

EAR99

Contact Plating :

Gold

Type :

Backplane

Product Depth (mm) :

58.5(mm)

Product Length (mm) :

26.6(mm)

Termination Style :

Through Hole

Product Height (mm) :

28.8(mm)

Mounting Angle :

RIGHT ANGLE

Pitch :

1.9 mm

Reach Compliance Code :

Compliant

Connector Usage :

-

Features :

-

Housing Color :

Black

Pitch (mm) :

1.9(mm)

Connector Type :

Header, Male Pins

Color :

Black

Base/Housing Material :

LCP (Liquid Crystal Polymer)

Packaging :

Tray

Number of Positions Loaded :

All

Operating Temperature :

-55 to 85 °C

Contact Layout, Typical :

60 Differential Pairs

Voltage Rating :

30 V

Contact Finish :

Gold

HTS Code :

8536.69.40.40

Current Rating :

750 mA

Number of Columns :

10

Contact Finish Thickness :

30.0µin (0.76µm)

Number of Rows :

18 Row

Maximum Operating Temperature :

+ 85 C

Series :

76560

Minimum Operating Temperature :

- 55 C

RoHS :

Details

Voltage Rating Max :

30VDC/30VAC
