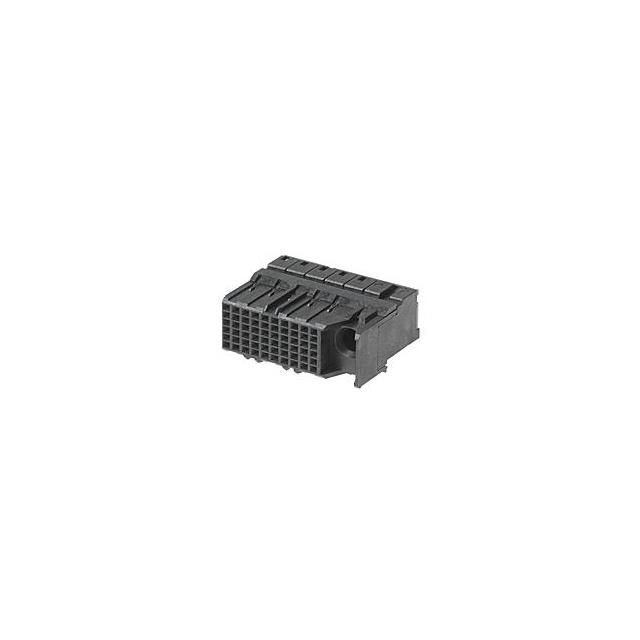

76460-5020
Or copy the link below:
- Mfr.Part #
- 76460-5020
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- IMPACT DC 2X10 GR SN
- Stock
- 174
- In Stock ：
- 174
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Specialized
- Mounting Option 1 :
- GUIDE SLOT
- Contact Style :
- SQ PIN-SKT
- Housing Color :
- Black
- Dielectric Withstanding Voltage :
- 500VAC V
- Series :
- 76460
- Reference Standard :
- UL
- Termination Method :
- Press Fit
- Voltage Rating :
- 30 V
- Package :
- Box
- Number of Positions :
- 60 Position
- Contact Finish :
- Gold
- Contact Layout, Typical :
- 20 Differential Pairs
- Board Mounting Option :
- PEG
- Contact Gender :
- FEMALE
- Pitch :
- 1.9 mm
- Contact Resistance :
- 10 MΩ
- Accessory Type :
- -
- Product :
- Receptacles
- Terminal Pitch :
- 1.905 mm
- Body Depth :
- 0.79 inch
- Durability :
- 200 Cycles
- Material Flammability Rating :
- UL94 V-0
- Tradename :
- Impact
- Reliability :
- COMMERCIAL
- Current Rating (Amps) :
- -
- Insulation Resistance :
- 1000000000 Ω
- Number of Columns :
- 10
- Current Rating :
- 750 mA
- Features :
- -
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Insertion Force-Max :
- .3336 N
- Color :
- Black
- Number of Contacts :
- 60(POS)
- Product Height (mm) :
- 11.3(mm)
- Termination Type :
- Press Fit
- Operating Temp Range :
- -55C to 85C
- Contact Material :
- Tin
- Contact Plating :
- Gold
- PCB Contact Row Spacing :
- 1.3462 mm
- Operating Temperature :
- -55°C ~ 85°C
- Contact Resistance Max :
- 10(mohm)
- Pitch (mm) :
- 1.9(mm)
- Mounting Option 2 :
- LOCKING
- Product Depth (mm) :
- 20.06(mm)
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Number of Positions Loaded :
- All
- Gender :
- RCP
- Product Status :
- Active
- Mounting Style :
- Through Hole
- Withdrawl Force-Min :
- .14734 N
- Number of Contact Rows :
- 6
- Minimum Operating Temperature :
- - 55 C
- Mounting Angle :
- RIGHT ANGLE
- Rated Current (Signal) :
- 0.75 A
- Current Rating (Max) :
- 0.75/Contact(A)
- Connector Style :
- Impact, Guide Right
- Mating Contact Pitch :
- 0.075 inch
- Connector Type :
- Receptacle, Female Sockets
- Packaging :
- Tray
- Termination Style :
- Press Fit
- PCB Contact Pattern :
- RECTANGULAR
- Number Of PCB Rows :
- 6
- Body Breadth :
- 0.43 inch
- Type :
- Backplane
- Total Number of Contacts :
- 60
- Number of Rows :
- 6 Row
- Product Length (mm) :
- 26.6(mm)
- Maximum Operating Temperature :
- + 85 C
- Termination :
- Press-Fit
- Reach Compliance Code :
- Compliant
- Body Orientation :
- RIGHT ANGLE
- Plating Thickness :
- 30u inch
- Connector Usage :
- -
- RoHS :
- Details
- Contact Finish Termination :
- TIN OVER NICKEL
- Voltage Rating Max :
- 30VDC/30VAC
- Contact Pattern :
- RECTANGULAR
- Datasheets
- 76460-5020
76460-5020 Documents
76460 Series Receptacle, Female Sockets Press-Fit Gold Black 30.0µin (0.76µm) 60 Position Positions Pitch: 1.9 mm -55°C ~ 85°C Tray Board Edge, Through Hole, Right Angle
76460-5020 Overview
Currently, it is packaged in Receptacle, Female Sockets.The mounting type of the device is Board Edge, Through Hole, Right Angle.A Tray case is used to package the product.A product of the 76460 Series, it belongs to the range of products of that series.-55°C ~ 85°C Operating Temperature is the default operating temperature for the device.
76460-5020 Features
76460 series
76460-5020 Applications
There are a lot of Molex
76460-5020 Backplane Connectors applications.
