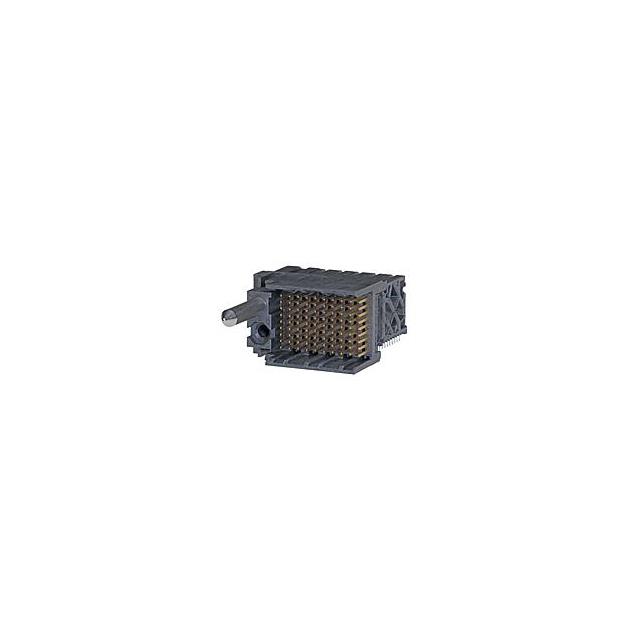

76410-3104

Manufacturer :

Molex

Product Category :

Specialized

Operating Temp Range :

-55C to 85C

Base/Housing Material :

LCP (Liquid Crystal Polymer)

Number of Positions :

90 Position

Mounting Angle :

RIGHT ANGLE

Type :

Backplane

Termination Style :

Through Hole

Connector Usage :

-

Voltage Rating :

30 V

Number of Columns :

10

Mount :

Through Hole

Series :

76410

ELV :

Compliant

Product Length (mm) :

26.6(mm)

Pin Count :

90

Body Orientation :

RIGHT ANGLE

Plating :

Tin

Number of Contacts :

90(POS)

Number of Rows :

9 Row

Housing Material :

Polymer

Product Height (mm) :

16.7(mm)

Number of Pairs :

3

Factory Lead Time :

11 Weeks

Mounting Style :

Through Hole

Current Rating :

750 mA

Mounting :

Through Hole

Product Length :

26.6 mm

Contact Material :

COPPER ALLOY

Number of Circuits :

90

RoHS :

Details

Contact Layout, Typical :

30 Differential Pairs

Brand :

Molex

Min Operating Temperature :

-55 °C

Max Operating Temperature :

85 °C

Country of Origin :

US

Product Depth (mm) :

41.8(mm)

Pitch :

1.9000 mm

Housing Color :

Black

Length :

26.6 mm

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Contact Finish :

Gold

Termination :

Press-Fit

Impedance :

100 Ω

Operating Temperature :

-55 to 85 °C

Package :

Box

Current Rating (Amps) :

-

Mounting Type :

Board Edge, Through Hole, Right Angle

Tradename :

Impact

Halogen Free :

Low Halogen

Orientation :

RIGHT ANGLE

Minimum Operating Temperature :

- 55 C

Subcategory :

Backplane Connectors

Shielding :

Unshielded

Termination Method :

Press Fit

Packaging :

Tray

Contact Finish Thickness :

30.0µin (0.76µm)

Material :

Thermoplastic

Lifecycle Status :

Production (Last Updated: 2 years ago)

Product Category :

High Speed / Modular Connectors

Number of Positions Loaded :

All

Color :

Black

Flammability Rating :

UL94 V-0

Number of Contact Rows :

9

Connector Style :

Impact, Guide Left

Current Rating (Max) :

0.75/Contact(A)

Number of Pins :

90

Pitch (mm) :

1.9(mm)

Reach Compliance Code :

Compliant

Voltage Rating Max :

30VDC/30VAC

Features :

Board Guide

Contact Plating :

Gold

Product Type :

High Speed / Modular Connectors

Data Rate :

25 Gbps

Gender :

Header

Manufacturer :

Molex

Connector Type :

Header, Male Pins

Product Status :

Active

Maximum Operating Temperature :

+ 85 C

Material Flammability Rating :

UL94 V-0
