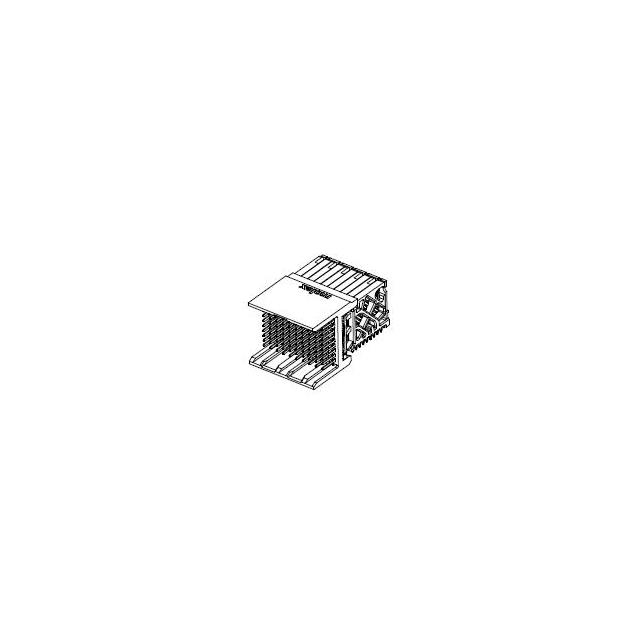

76410-1117

Manufacturer :

Molex

Product Category :

Specialized

Gender :

HDR

Current Rating (Amps) :

-

HTS Code :

8536.69.40.40

Current Rating (Max) :

0.75/Contact(A)

Mount :

Edge, Through Hole

Reach Compliance Code :

Compliant

Product Height (mm) :

16.7(mm)

Termination Method :

Press Fit

Product Length (mm) :

19(mm)

Termination Type :

Press Fit

Type :

Backplane

Orientation :

RIGHT ANGLE

Tradename :

Impact

Lifecycle Status :

Production (Last Updated: 2 years ago)

Mounting Style :

Through Hole

Number of Circuits :

90

Voltage Rating :

30 V

Country of Origin :

US

Maximum Operating Temperature :

+ 85 C

Series :

76410

Operating Temperature :

-55°C ~ 85°C

Min Operating Temperature :

-55 °C

Mounting Type :

Board Edge, Through Hole, Right Angle

Product Type :

High Speed / Modular Connectors

Material Flammability Rating :

UL94 V-0

Mixed Contacts :

No

Impedance :

100 Ω

RoHS :

Compliant

Max Operating Temperature :

85 °C

MIL Conformance :

No

Minimum Operating Temperature :

- 55 C

Connector Style :

Impact

Brand :

Molex

Pitch :

1.9 mm

Pitch (mm) :

1.9(mm)

Operating Temp Range :

-55C to 85C

Filter Feature :

No

Termination :

Press-Fit

Contact Material :

COPPER ALLOY

Plating :

Tin

Contact Finish Thickness :

30.0µin (0.76µm)

Package :

Box

Current Rating :

750 mA

Number of Contacts :

90(POS)

Product Category :

High Speed / Modular Connectors

Terminal Pitch :

1.9 mm

Number of Contact Rows :

9

Housing Color :

Black

IEC Conformance :

No

Number of Positions :

90

Product Status :

Active

Pbfree Code :

yes

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Contact Resistance Max :

10(mohm)

Termination Style :

Through Hole

ECCN Code :

EAR99

Connector Usage :

-

Product Depth (mm) :

28.7(mm)

Contact Gender :

Male

Contact Plating :

Gold Over Nickel

Total Number of Contacts :

90

Features :

-

Number of Rows :

9

Number of Columns :

10

Mounting Angle :

RIGHT ANGLE

Option :

GENERAL PURPOSE

Connector Type :

Header, Male Pins

Color :

Black

Voltage Rating Max :

30VDC/30VAC

Packaging :

Tray

Data Rate :

25 Gbps

Schedule B :

8536694040, 8536694040/8536694040/8536694040/8536694040/8536694040

Shielding :

No

Contact Layout, Typical :

30 Differential Pairs

DIN Conformance :

No

Subcategory :

Backplane Connectors

Number of Positions Loaded :

All

UL Flammability Code :

94V-0

Flammability Rating :

UL94 V-0

Number of Pairs :

3

Manufacturer :

Molex

Body Orientation :

RIGHT ANGLE

Contact Finish :

Gold

Factory Lead Time :

11 Weeks
