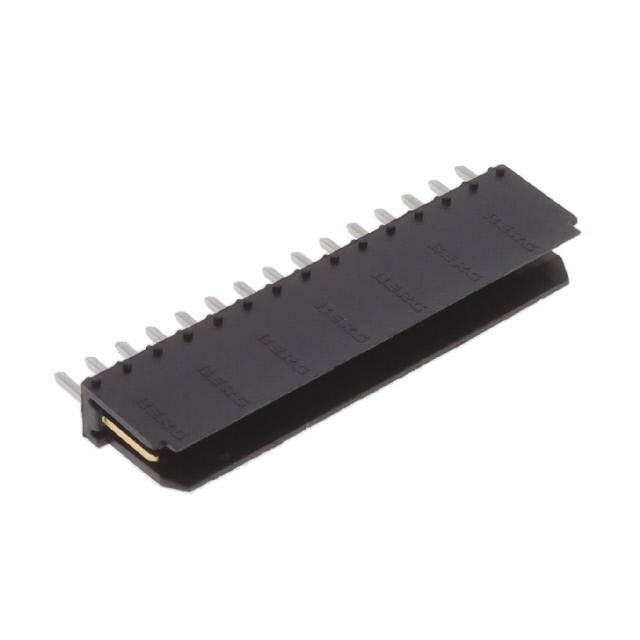

76384-315LF
Or copy the link below:
- Mfr.Part #
- 76384-315LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 15POS 2.54MM
- Stock
- 56
- In Stock ：
- 56
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Male Pins
- Number of Positions :
- 15
- Contact Material :
- COPPER ALLOY
- Lead Length :
- 3.4mm
- Factory Lead Time :
- 9 Weeks
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.368 9.35mm
- Termination :
- Solder
- Orientation :
- Straight
- Insulation Resistance :
- 100GOhm
- Contact Length - Post :
- 0.134 3.40mm
- Fastening Type :
- Friction Lock
- Contact Shape :
- Square
- Gender :
- Male
- Pitch - Mating :
- 0.100 2.54mm
- Min Operating Temperature :
- -40°C
- Contact Type :
- Male Pin
- Max Operating Temperature :
- 125°C
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Color :
- Black
- Max Voltage Rating (AC) :
- 1kV
- Lead Free :
- Lead Free
- Pitch :
- 2.54mm
- Series :
- Dubox™
- Number of Rows :
- 1
- Contact Finish - Mating :
- Gold, GXT™
- Insulation Material :
- Thermoplastic, Glass Filled
- Connector Type :
- Header
- Insulation Color :
- Black
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Style :
- Board to Cable/Wire
- Housing Material :
- Thermoplastic
- Contact Length - Mating :
- 0.197 5.00mm
- Contact Plating :
- Gold
- Current Rating :
- 3A
- Overall Contact Length :
- 0.411 10.44mm
- Voltage - Rated :
- 1kV
- Contact Finish - Post :
- Tin
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 37.1mm
- Depth :
- 5mm
- Packaging :
- Tube
- Number of Contacts :
- 15
- Mating Post Length :
- 5mm
- Shrouding :
- Shrouded - 2 Wall
- Mounting Type :
- Through Hole
- Mount :
- Through Hole
- Number of Positions Loaded :
- All
- Housing Color :
- Blue
- Datasheets
- 76384-315LF
76384-315LF Documents
Dubox™ Series 1-Row Header Solder Copper Alloy Tube Through Hole Gold, GXT™ Thermoplastic, Glass Filled 15-Position Board to Cable/Wire 0.368 9.35mm Height
76384-315LF Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the Dubox™ Series.Use it when the temperature is below 125°C.Temperatures below -40°C are required for this device to operate.It is mounted by Through Hole.
76384-315LF Features
Dubox™ series
76384-315LF Applications
There are a lot of Amphenol ICC (FCI)
76384-315LF Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
