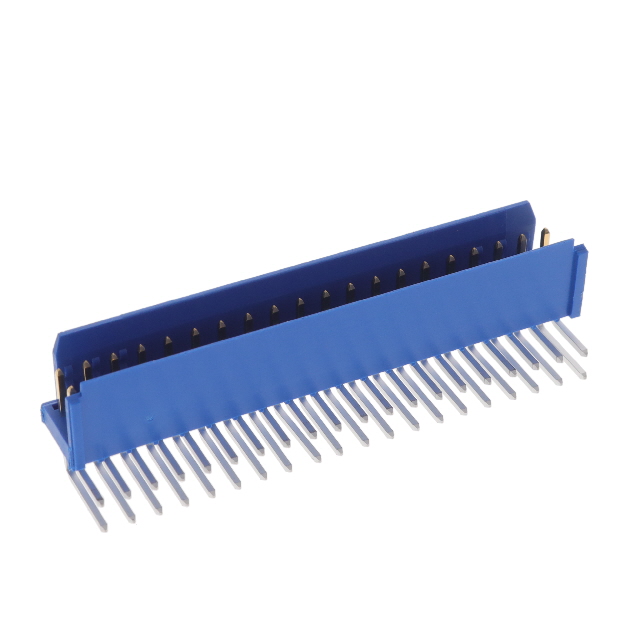

76383-320LF
Or copy the link below:
- Mfr.Part #
- 76383-320LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 40POS 2.54MM
- Stock
- 38
- In Stock ：
- 38
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Male Pins
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Finish - Mating :
- Gold, GXT™
- Contact Material :
- Phosphor Bronze
- Packaging :
- Tube
- Insulation Color :
- Blue
- Orientation :
- RIGHT ANGLE
- Fastening Type :
- Friction Lock
- Mount :
- Through Hole
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Gender :
- Male
- RoHS Status :
- RoHS Compliant
- Contact Shape :
- Square
- Termination :
- Solder
- Lead Length :
- 3.35mm
- Contact Length - Post :
- 0.154 3.91mm
- Pitch :
- 2.54mm
- Connector Type :
- Header
- Housing Color :
- Blue
- Insulation Material :
- Polyester, Glass Filled
- Number of Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 8 Weeks
- Contact Length - Mating :
- 0.197 5.00mm
- Shrouding :
- Shrouded - 2 Wall
- Pitch - Mating :
- 0.100 2.54mm
- Number of Contacts :
- 40
- Contact Type :
- Male Pin
- Mating Post Length :
- 5mm
- Housing Material :
- Polyester
- Color :
- Blue
- Max Operating Temperature :
- 125°C
- Series :
- Dubox™
- Lead Free :
- Lead Free
- Style :
- Board to Cable/Wire
- Number of Positions Loaded :
- All
- Current Rating :
- 3A
- Number of Positions :
- 40
- Insulation Height :
- 0.307 7.80mm
- Material Flammability Rating :
- UL94 V-0
- Min Operating Temperature :
- -40°C
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Finish - Post :
- Tin
- Depth :
- 13.28mm
- Mounting Type :
- Through Hole, Right Angle
- Contact Plating :
- GXT, Gold
- Voltage - Rated :
- 1kV
- Insulation Resistance :
- 100GOhm
- Max Voltage Rating (AC) :
- 1kV
- Length :
- 50.62mm
- Datasheets
- 76383-320LF
76383-320LF Documents
Dubox™ Series 2-Row Header Solder Phosphor Bronze Tube Through Hole, Right Angle Gold, GXT™ Polyester, Glass Filled 40-Position Board to Cable/Wire 0.307 7.80mm Height
76383-320LF Overview
It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Tube case is used.It belongs to the Dubox™ Series of products.It's best to use it when the temperature is below 125°C.This device must operate at a minimum temperature of -40°C.The part is mounted by Through Hole.
76383-320LF Features
Dubox™ series
76383-320LF Applications
There are a lot of Amphenol ICC (FCI)
76383-320LF Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
