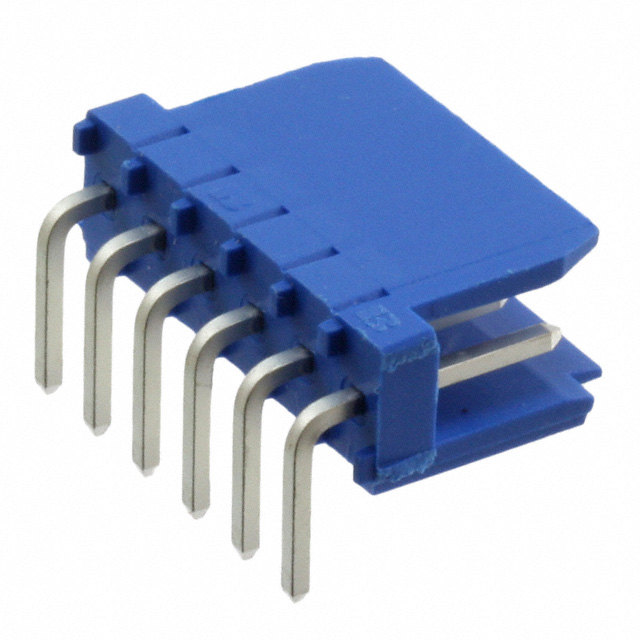

76382-406LF
Or copy the link below:
- Mfr.Part #
- 76382-406LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 6POS 2.54MM
- Stock
- 997
- In Stock ：
- 997
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Male Pins
- Color :
- Blue
- Contact Plating :
- Tin
- Width :
- 9.34mm
- Min Operating Temperature :
- -40°C
- Housing Color :
- Blue
- Number of Positions :
- 6
- Insulation Material :
- Polyester, Glass Filled
- Termination :
- Solder
- Number of Rows :
- 1
- Connector Type :
- Header
- Contact Finish - Post :
- Tin
- Length :
- 15.06mm
- Gender :
- Male
- Max Operating Temperature :
- 125°C
- Contact Length - Mating :
- 0.197 5.00mm
- Mating Post Length :
- 5mm
- Current Rating :
- 3A
- Lead Free :
- Lead Free
- Fastening Type :
- Friction Lock
- Insulation Color :
- Blue
- RoHS Status :
- RoHS Compliant
- Voltage - Rated :
- 1kV
- Number of Positions Loaded :
- All
- Housing Material :
- Thermoplastic
- Contact Material :
- Phosphor Bronze
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole, Right Angle
- Radiation Hardening :
- No
- Contact Type :
- Male Pin
- Shrouding :
- Shrouded - 4 Wall
- Number of Contacts :
- 6
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Style :
- Board to Cable/Wire
- Contact Length - Post :
- 0.134 3.40mm
- Series :
- Dubox™
- Factory Lead Time :
- 8 Weeks
- Contact Finish Thickness - Mating :
- 78.7μin 2.00μm
- Pitch - Mating :
- 0.100 2.54mm
- Contact Shape :
- Square
- Max Voltage Rating (AC) :
- 1kV
- Lead Length :
- 3.4mm
- Orientation :
- RIGHT ANGLE
- Insulation Height :
- 0.209 5.30mm
- Contact Finish - Mating :
- Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2015
- Packaging :
- Bulk
- Pitch :
- 2.54mm
- Mount :
- Through Hole
- Datasheets
- 76382-406LF
76382-406LF Documents
Dubox™ Series 1-Row Header Solder Phosphor Bronze Bulk Through Hole, Right Angle Tin Polyester, Glass Filled 6-Position Board to Cable/Wire 0.209 5.30mm Height
76382-406LF Overview
The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Dubox™ Series.When the temperature is below 125°C, it is best to use it.A minimum operating temperature of -40°C is required for this device.Part Through Hole is mounted to the part.
76382-406LF Features
Dubox™ series
76382-406LF Applications
There are a lot of Amphenol ICC (FCI)
76382-406LF Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
