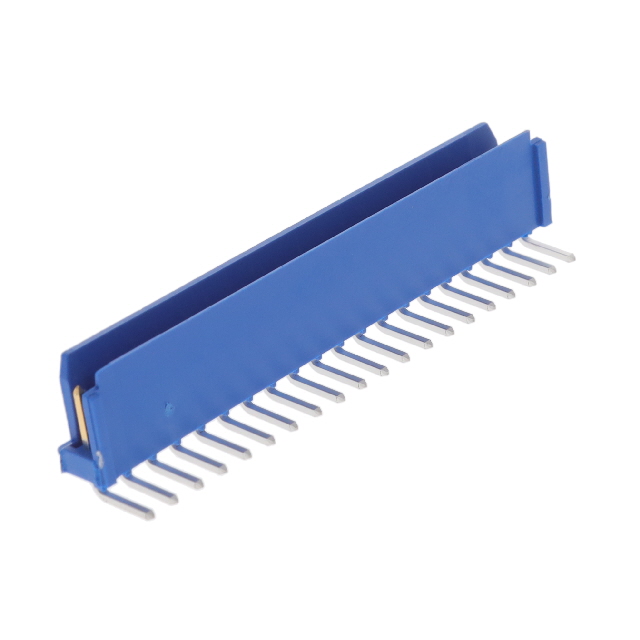

76382-320LF
Or copy the link below:
- Mfr.Part #
- 76382-320LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 20POS 2.54MM
- Stock
- 1,141
- In Stock ：
- 1,141
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Male Pins
- Contact Finish - Post :
- Tin
- RoHS Status :
- RoHS Compliant
- Insulation Resistance :
- 100GOhm
- Housing Material :
- Polyester
- Lead Free :
- Lead Free
- Contact Type :
- Male Pin
- Termination :
- Solder
- Number of Contacts :
- 20
- Color :
- Blue
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 1kV
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Length - Post :
- 0.134 3.40mm
- Insulation Height :
- 0.209 5.30mm
- Contact Finish - Mating :
- Gold, GXT™
- Number of Positions :
- 20
- Pitch - Mating :
- 0.100 2.54mm
- Number of Rows :
- 1
- Min Operating Temperature :
- -40°C
- Insulation Material :
- Polyester, Glass Filled
- Mount :
- Through Hole
- Pitch :
- 2.54mm
- Mounting Type :
- Through Hole, Right Angle
- Length :
- 50.62mm
- Max Operating Temperature :
- 125°C
- Housing Color :
- Blue
- Orientation :
- RIGHT ANGLE
- Series :
- Dubox™
- Packaging :
- Tube
- Current Rating :
- 3A
- Contact Material :
- Phosphor Bronze
- Fastening Type :
- Friction Lock
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Gender :
- Male
- Contact Length - Mating :
- 0.197 5.00mm
- Lead Length :
- 3.4mm
- Number of Positions Loaded :
- All
- Insulation Color :
- Blue
- Style :
- Board to Cable/Wire
- Contact Shape :
- Square
- Connector Type :
- Header
- Contact Plating :
- GXT, Gold
- Mating Post Length :
- 5mm
- Material Flammability Rating :
- UL94 V-0
- Max Voltage Rating (AC) :
- 1kV
- Factory Lead Time :
- 8 Weeks
- Datasheets
- 76382-320LF
76382-320LF Documents
Dubox™ Series 1-Row Header Solder Phosphor Bronze Tube Through Hole, Right Angle Gold, GXT™ Polyester, Glass Filled 20-Position Board to Cable/Wire 0.209 5.30mm Height
76382-320LF Overview
Packaging is Header.Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Tube case.As a product of the Dubox™ Series, it can be found in this category.Temperatures below 125°C are best for using it.There's a minimum temperature of -40°C for this device.In this case, Through Hole mounts the part.
76382-320LF Features
Dubox™ series
76382-320LF Applications
There are a lot of Amphenol ICC (FCI)
76382-320LF Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
