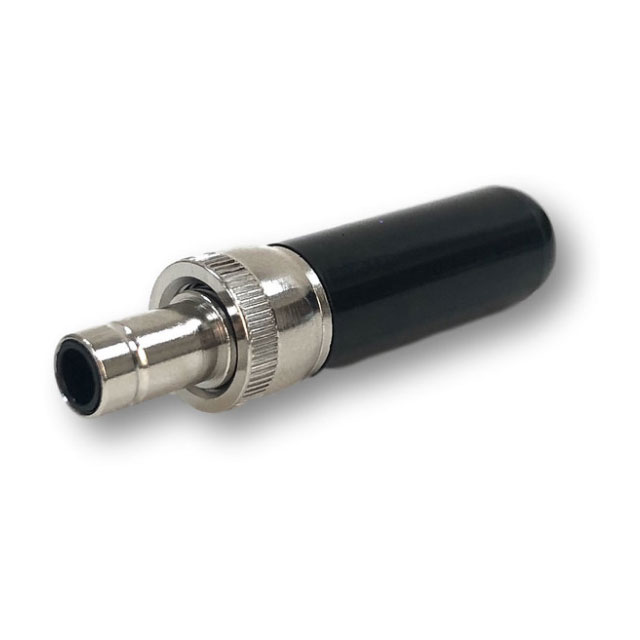

761KZ

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Mounting Type :

Free Hanging (In-Line)

Current Rating :

5 A

Mating Length/Depth :

0.476 (12.10mm)

Housing Material :

Thermoplastic (TP)

Package :

Bulk

Mounting Feature :

-

Includes :

-

ECCN :

EAR99

Product :

Plugs

Ingress Protection :

-

Material Flammability Rating :

-

Body Material :

Brass

Contact Material :

COPPER ALLOY

Thread Size :

-

Product Status :

Active

Shielding :

Unshielded

Internal Switch(s) :

Does Not Contain Switch

Gender :

PLUG

Actual Diameter :

0.098 (2.50mm ID), 0.217 (5.50mm OD)

Connector Type :

PLUG

Inside Contact Diameter :

2.5 mm

Itar Registered :

Unavailable

IP Rating :

-

Contact Plating :

Nickel

Outside Contact Diameter :

5.5 mm

Termination Style :

Solder

Packaging :

Bulk

Series :

-

RoHS :

Details

Current Rating (Amps) :

5 A

Voltage Rating :

24 VDC

Termination :

Solder Eyelet(s)

Mounting Style :

CABLE

Insulation Color :

Black

Mounting Angle :

Straight

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Body Color :

Silver, Black

Voltage - Rated :

24VDC

Operating Temperature :

-

Contact Material - Plating :

Tin

Features :

Cable Clamp, Thread Lock

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Pin Diameter :

-
