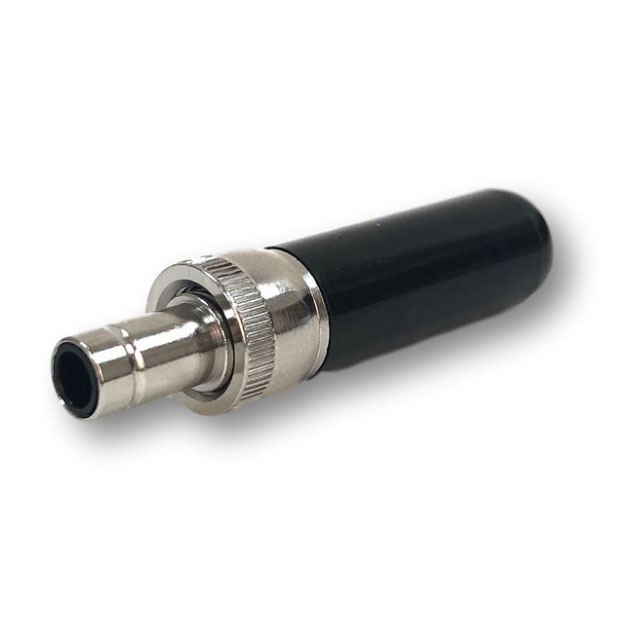

761KHZ
- Mfr.Part #
- 761KHZ
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Datasheet
- Download
- Description
- DC POWER PLUG, Z SERIES, 2.5MM X
- Stock
- 264
- In Stock :
- 264
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Power Connectors
- Body Material :
- Brass
- Mounting Feature :
- -
- Mating Length/Depth :
- 0.476 (12.10mm)
- Outside Contact Diameter :
- 5.5 mm
- Gender :
- PL
- Pin Diameter :
- -
- Mounting Angle :
- Straight
- Mounting Style :
- CABLE
- Contact Plating :
- Nickel
- ECCN :
- EAR99
- Contact Material :
- COPPER ALLOY
- Voltage - Rated :
- 24VDC
- Insulation Color :
- Black
- Number of Terminals :
- 2
- Itar Registered :
- Unavailable
- Material Flammability Rating :
- -
- Maximum Operating Temperature :
- + 105 C
- Operating Temperature :
- -
- Actual Diameter :
- 0.098 (2.50mm ID), 0.217 (5.50mm OD)
- Includes :
- -
- Internal Switch(s) :
- Does Not Contain Switch
- Voltage Rating Max :
- 24VDC
- Current Rating (Amps) :
- 7.5 A
- Product Depth (mm) :
- Not Required(mm)
- Termination :
- Solder Eyelet(s)
- IP Rating :
- -
- Shielding :
- Unshielded
- Product Length (mm) :
- 45.7(mm)
- Product Height (mm) :
- Not Required(mm)
- Current Rating (Max) :
- 7.5(A)
- Housing Material :
- Thermoplastic (TP)
- Features :
- Cable Clamp, Thread Lock
- Packaging :
- Bulk
- Product Diameter (mm) :
- 9.5(mm)
- Termination Method :
- Solder
- Package :
- Bulk
- Connector Type :
- PLUG
- Body Color :
- Silver, Black
- Voltage Rating :
- 24 VDC
- Product :
- Plugs
- Thread Size :
- -
- Termination Style :
- Solder
- Product Status :
- Active
- Contact Material - Plating :
- Tin
- Current Rating :
- 7.5 A
- Type :
- DC Power
- Number of Contacts :
- 2(POS)
- Body Orientation :
- Straight
- RoHS :
- Details
- Industry Recognized Mating Diameter :
- 2.50mm ID (0.098), 5.50mm OD (0.217)
- Inside Contact Diameter :
- 2.5 mm
- Mounting Type :
- Free Hanging (In-Line)
- Number of Positions/Contacts :
- 2 Conductors, 2 Contacts
- Number of Ports :
- 1(Port)
- Ingress Protection :
- -
- Series :
- -
- Datasheets
- 761KHZ
