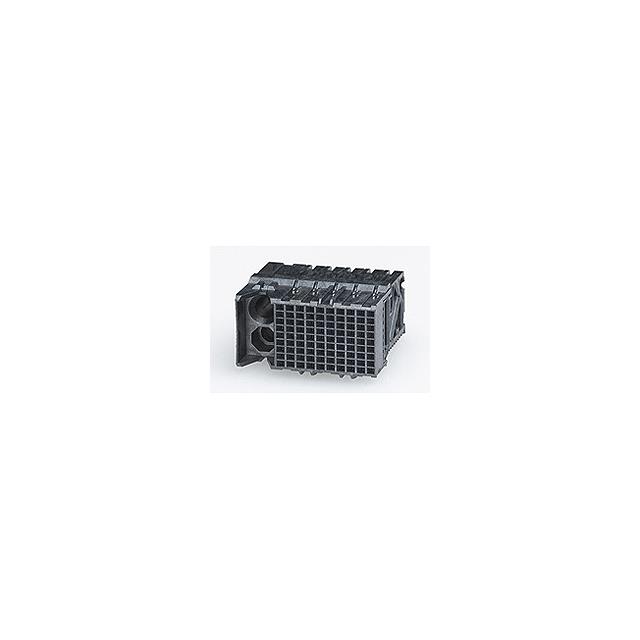

76170-3010

Manufacturer :

Molex

Product Category :

Specialized

Pbfree Code :

yes

Operating Temperature :

-55 to 85 °C

Current Rating :

750 mA

Brand :

Molex

Mounting :

Through Hole

Type :

Daughter Card

ELV :

Compliant

Min Operating Temperature :

-55 °C

Number of Contacts :

90(POS)

Contact Material :

COPPER ALLOY

MIL Conformance :

No

Contact Gender :

Male

Option :

GENERAL PURPOSE

Number of Positions Loaded :

All

Number of Circuits :

90

Product Height (mm) :

15.56(mm)

Current Rating (Amps) :

-

Number of Rows :

9

HTS Code :

8536.69.40.40

Connector Usage :

-

Mounting Angle :

RIGHT ANGLE

Minimum Operating Temperature :

- 55 C

Number of Pairs :

3

Contact Finish Thickness :

30.0µin (0.76µm)

Product Category :

High Speed / Modular Connectors

Operating Temp Range :

-55C to 85C

Orientation :

RIGHT ANGLE

Connector Type :

Receptacle, Female Sockets

Mount :

Through Hole

Product Length :

26.6 mm

Number of Columns :

10

Current Rating (Max) :

0.75/Contact(A)

Country of Origin :

US

Voltage Rating Max :

30VDC/30VAC

Package :

Box

Termination Method :

Press Fit

Material :

Thermoplastic

Housing Material :

Polymer

Max Operating Temperature :

85 °C

DIN Conformance :

No

Data Rate :

25 Gbps

Plating :

Tin

Factory Lead Time :

11 Weeks

Pitch (mm) :

1.9(mm)

Contact Finish :

Gold

Number of Contact Rows :

9

Connector Style :

Impact, Guide Left

Features :

Board Guide

RoHS :

Compliant

Halogen Free :

Low Halogen

Color :

Black

Product Status :

Active

Contact Plating :

Gold

Pin Count :

90

Product Type :

High Speed / Modular Connectors

Terminal Pitch :

1.9 mm

Packaging :

Tray

Housing Color :

Black

Mixed Contacts :

No

Manufacturer :

Molex

Termination Type :

Solder

Subcategory :

Backplane Connectors

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Length :

26.6 mm

Series :

76170

Contact Layout, Typical :

30 Differential Pairs

Shielding :

Unshielded

Body Orientation :

RIGHT ANGLE

ECCN Code :

EAR99

Material Flammability Rating :

UL94 V-0

Pitch :

1.9000 mm

Additional Feature :

Impact

Termination Style :

Through Hole

Product Depth (mm) :

24.11(mm)

Gender :

Receptacle

Voltage Rating :

30 V

Number of Positions :

90 Position

Maximum Operating Temperature :

+ 85 C

Voltage Rating (AC) :

30 V

Flammability Rating :

UL94 V-0

Filter Feature :

No

Mounting Style :

Through Hole

Mounting Type :

Board Edge, Through Hole, Right Angle

IEC Conformance :

No

Reach Compliance Code :

Compliant

Lifecycle Status :

Production (Last Updated: 2 years ago)

Contact Finish Termination :

NOT SPECIFIED

Tradename :

Impact

Termination :

Press-Fit

Impedance :

100 Ω

Base/Housing Material :

LCP (Liquid Crystal Polymer)
