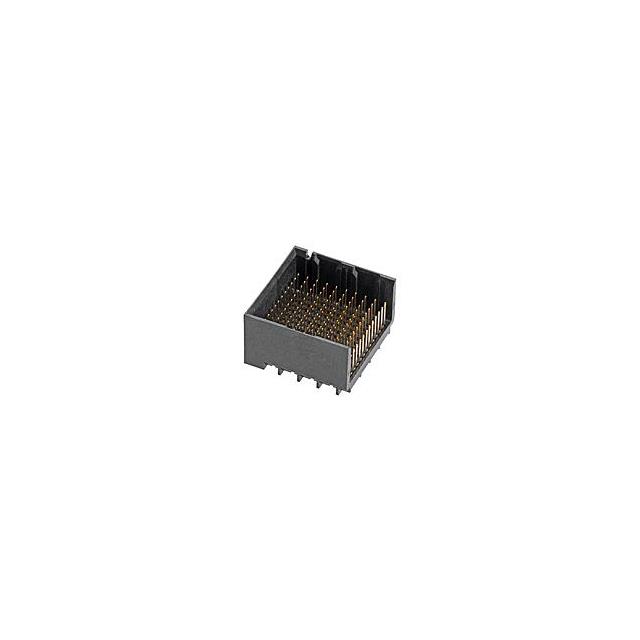

76155-1114
Or copy the link below:
- Mfr.Part #
- 76155-1114
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- IMPACT BP 4X10 LW SN
- Stock
- 156
- In Stock ：
- 156
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Specialized
- Pitch :
- 1.9 mm
- Mating Contact Pitch :
- 0.075 inch
- Number of Positions Loaded :
- All
- Body Breadth :
- 0.819 inch
- Features :
- -
- Contact Resistance Max :
- 10(mohm)
- Contact Material :
- COPPER ALLOY
- Pitch (mm) :
- 1.9(mm)
- Voltage Rating Max :
- 30VDC/30VAC
- Minimum Operating Temperature :
- - 55 C
- Material Flammability Rating :
- UL94 V-0
- Termination Style :
- Through Hole
- Current Rating (Amps) :
- -
- Number of Rows :
- 12 Row
- Contact Finish Termination :
- TIN OVER NICKEL
- Operating Temp Range :
- -55C to 85C
- Termination Method :
- Press Fit
- Contact Layout, Typical :
- 40 Differential Pairs
- Termination :
- Press-Fit
- Withdrawl Force-Min :
- .14734 N
- Mating Contact Row Spacing :
- 0.053 inch
- Insulation Resistance :
- 1000000000 Ω
- Current Rating :
- 750 mA
- Terminal Length :
- 0.055 inch
- Plating Thickness :
- 30u inch
- Durability :
- 200 Cycles
- Product Category :
- High Speed / Modular Connectors
- Body Orientation :
- Straight
- Mounting Angle :
- Vertical
- Connector Usage :
- -
- Housing Color :
- Black
- Number of Columns :
- 10
- Product Depth (mm) :
- 20.8(mm)
- ECCN Code :
- EAR99
- Mounting Style :
- Straight
- Connector Type :
- BOARD CONNECTOR
- Product Type :
- High Speed / Modular Connectors
- Reliability :
- COMMERCIAL
- Series :
- 76155
- Contact Gender :
- Male
- Maximum Operating Temperature :
- + 85 C
- HTS Code :
- 8536.69.40.40
- Mounting Type :
- BOARD
- Number of Contact Rows :
- 12
- Contact Plating :
- Gold Over Nickel
- Number Of PCB Rows :
- 12
- Number of Contacts :
- 120(POS)
- Product Status :
- Active
- Package :
- Box
- Operating Temperature :
- -55°C ~ 85°C
- Product Length (mm) :
- 20.3(mm)
- Gender :
- HDR
- Contact Finish :
- Gold
- Product Height (mm) :
- 11.95(mm)
- Color :
- Black
- RoHS :
- Details
- Mounting Option 1 :
- LOCKING
- PCB Contact Row Spacing :
- 1.3462 mm
- Contact Pattern :
- RECTANGULAR
- Terminal Pitch :
- 1.905 mm
- Reach Compliance Code :
- Compliant
- Contact Finish Thickness :
- 30.0µin (0.76µm)
- Packaging :
- Tray
- Contact Resistance :
- 10 MΩ
- Current Rating (Max) :
- 0.75/Contact(A)
- Tradename :
- Impact
- Rated Current (Signal) :
- 0.75 A
- Connector Style :
- Impact
- PCB Contact Pattern :
- RECTANGULAR
- Number of Positions :
- 120 Position
- Insertion Force-Max :
- .3336 N
- Reference Standard :
- UL
- Dielectric Withstanding Voltage :
- 500VAC V
- Voltage Rating :
- 30 V
- Type :
- Backplane
- Brand :
- Molex
- Termination Type :
- Press Fit
- Total Number of Contacts :
- 120
- Body Depth :
- 0.47 inch
