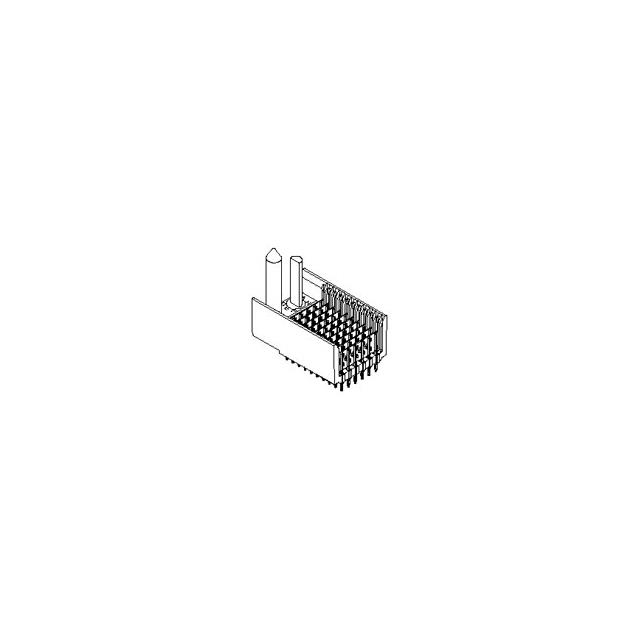

76135-8501

Manufacturer :

Molex

Product Category :

Specialized

Pitch :

2 mm

Contact Material :

COPPER ALLOY

Product Category :

Hard Metric Connectors

Number of Columns :

25

RoHS Status :

RoHS Compliant

Product :

Headers

Lifecycle Status :

OBSOLETE (Last Updated: 4 months ago)

Country of Origin :

US

Termination Method :

Solder

Voltage Rating :

120 V

Gender :

Male

Mounting Angle :

Vertical

Number of Contact Rows :

8

Number of Rows :

8

Pitch (mm) :

2(mm)

Min Operating Temperature :

-55 °C

Subcategory :

Backplane Connectors

Number of Positions :

200

Current Rating (Max) :

1/Contact(A)

Orientation :

Vertical

Minimum Operating Temperature :

- 55 C

RoHS :

Details

Manufacturer Lifecycle Status :

OBSOLETE (Last Updated: 4 months ago)

Number of Contacts :

200

Max Operating Temperature :

85 °C

Current Rating :

3 A

Brand :

Molex

Termination :

Solder

Housing Material :

Polymer

Maximum Operating Temperature :

+ 85 C

Mount :

Through Hole

Product Type :

Hard Metric Connectors

Max Voltage Rating (DC) :

120.12 kV

Series :

76135

Data Rate :

6.25 Gbps

Contact Plating :

Gold

Product Length (mm) :

57(mm)

Product Height (mm) :

25.8(mm)

Operating Temp Range :

-55C to 85C

Number of Circuits :

200

Type :

VHDM

Packaging :

Tube

Mounting Style :

Through Hole

Body Orientation :

Straight

Voltage Rating Max :

120VDC/120VAC

Termination Style :

Solder Tail

Voltage Rating (AC) :

120 V

Tradename :

VHDM

Housing Color :

Black

Product Depth (mm) :

21.8(mm)

Manufacturer :

Molex
