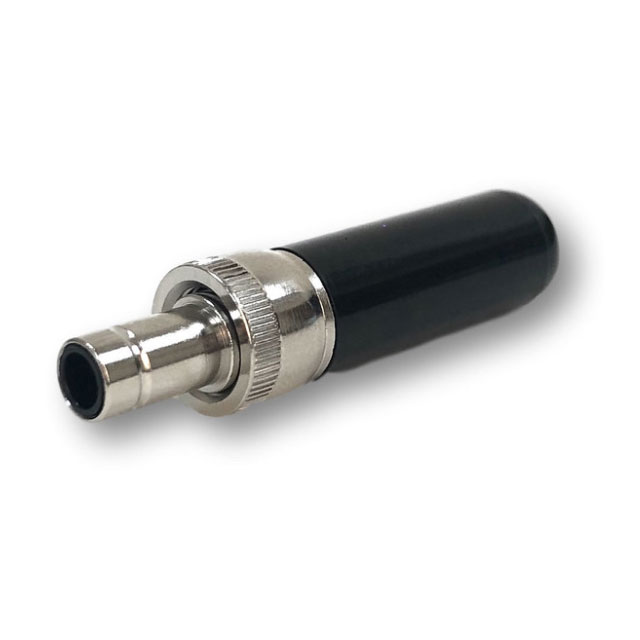

760KZ

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

ECCN :

EAR99

Housing Material :

Thermoplastic (TP)

Current Rating :

5 A

Product Status :

Active

Contact Material :

COPPER ALLOY

Voltage Rating :

24 VDC

Termination :

Solder Eyelet(s)

Mounting Style :

CABLE

RoHS :

Details

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Mating Length/Depth :

0.374 (9.50mm)

Includes :

-

Actual Diameter :

0.098 (2.50mm ID), 0.217 (5.50mm OD)

Internal Switch(s) :

Does Not Contain Switch

Mounting Angle :

Straight

Number of Terminals :

2

IP Rating :

-

Thread Size :

-

Gender :

PL

Current Rating (Max) :

5(A)

Product Diameter (mm) :

9.5(mm)

Series :

-

Product :

Plugs

Shielding :

Unshielded

Product Depth (mm) :

Not Required(mm)

Voltage - Rated :

24VDC

Connector Type :

PLUG

Ingress Protection :

-

Packaging :

Bulk

Color :

Black

Body Material :

Brass

Number of Contacts :

2(POS)

Itar Registered :

Unavailable

Contact Material - Plating :

Tin

Mounting Type :

Free Hanging (In-Line)

Material Flammability Rating :

-

Operating Temperature :

-

Contact Plating :

Nickel

Pin Diameter :

-

Package :

Bulk

Features :

Cable Clamp, Thread Lock

Body Orientation :

Straight

Body Color :

Silver, Black

Mounting Feature :

-

Product Length (mm) :

43.2(mm)

Outside Contact Diameter :

5.5 mm

Type :

DC Power

Voltage Rating Max :

24VDC

Termination Style :

Solder

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Inside Contact Diameter :

2.5 mm

Current Rating (Amps) :

5 A

Number of Ports :

1(Port)

Insulation Color :

Black

Product Height (mm) :

Not Required(mm)

Termination Method :

Solder
