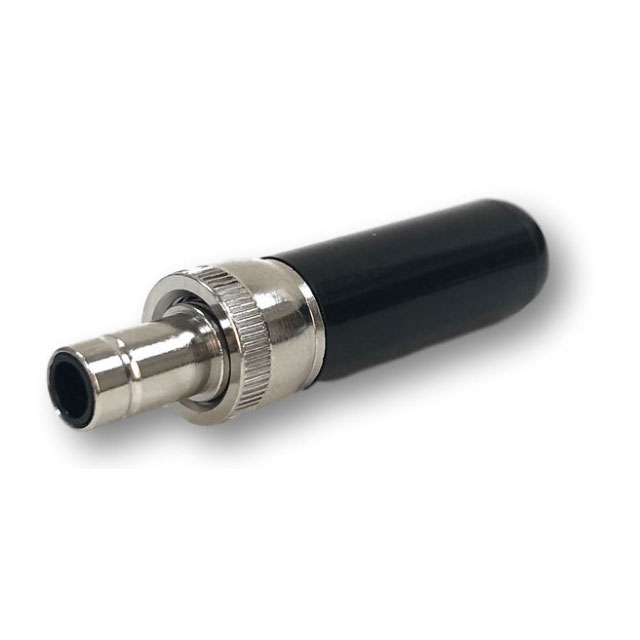

760KHZ

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Internal Switch(s) :

Does Not Contain Switch

Actual Diameter :

0.098 (2.50mm ID), 0.217 (5.50mm OD)

Termination Style :

Solder

Outside Contact Diameter :

5.5 mm

RoHS :

Details

Product Height (mm) :

Not Required(mm)

Number of Terminals :

2

Insulation Color :

Black

Mounting Style :

CABLE

Color :

Black

Voltage - Rated :

24VDC

Housing Material :

Thermoplastic (TP)

Includes :

-

Operating Temperature :

-

Features :

Cable Clamp, Thread Lock

Contact Material - Plating :

Tin

Number of Ports :

1(Port)

Product Length (mm) :

43.2(mm)

Maximum Operating Temperature :

+ 105 C

Pin Diameter :

-

ECCN :

EAR99

Inside Contact Diameter :

2.5 mm

Current Rating (Max) :

7.5(A)

Packaging :

Bulk

Contact Material :

COPPER ALLOY

Termination Method :

Solder

Shielding :

Unshielded

Mounting Type :

Free Hanging (In-Line)

Voltage Rating :

24 VDC

Mounting Angle :

Straight

Product Diameter (mm) :

9.5(mm)

Body Material :

Brass

Termination :

Solder Eyelet(s)

Contact Plating :

Nickel

Gender :

PL

Mounting Feature :

-

Current Rating :

7.5 A

Type :

DC Power

Series :

-

Product Depth (mm) :

Not Required(mm)

Itar Registered :

Unavailable

Mating Length/Depth :

0.374 (9.50mm)

Number of Contacts :

2(POS)

Ingress Protection :

-

Body Color :

Silver, Black

Package :

Bulk

Connector Type :

PLUG

Product :

Plugs

Material Flammability Rating :

-

IP Rating :

-

Voltage Rating Max :

24VDC

Thread Size :

-

Number of Positions/Contacts :

2 Conductors, 2 Contacts

Product Status :

Active

Body Orientation :

Straight

Current Rating (Amps) :

7.5 A

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)
