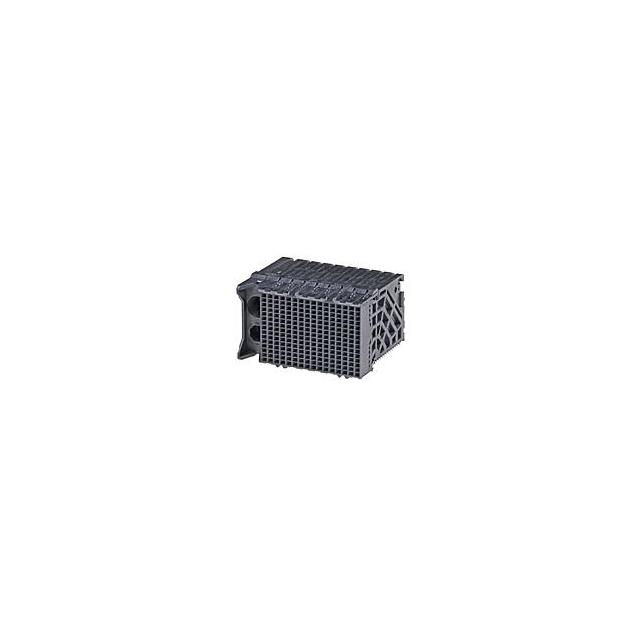

76060-3126

Manufacturer :

Molex

Product Category :

Specialized

Terminal Pitch :

1.35 mm

Tradename :

Impact

Brand :

Molex

Contact Style :

SQ PIN-SKT

Number of Terminations :

2

Number of Columns :

16

Terminal Length :

0.047 inch

Product Category :

High Speed / Modular Connectors

Contact Resistance :

10 MΩ

Composition :

Wirewound

Reference Standard :

UL

Additional Feature :

Impact

PCB Contact Row Spacing :

1.3462 mm

Lead Length :

38.1 mm

Features :

Military, Moisture Resistant

Contact Finish :

Gold

Material Flammability Rating :

UL94 V-0

Contact Pattern :

RECTANGULAR

Option :

GENERAL PURPOSE

Termination Type :

Press Fit

Durability :

200 Cycles

Connector Type :

Receptacle, Female Sockets

Gender :

HDR

Body Orientation :

RIGHT ANGLE

Mating Contact Pitch :

0.075 inch

Number of Rows :

15 Row

Contact Finish Thickness :

30.0µin (0.76µm)

MIL Conformance :

No

Contact Resistance Max :

10(mohm)

Voltage Rating Max :

30VDC/30VAC

Current Rating (Amps) :

-

Failure Rate :

0.01 %

Rated Current (Signal) :

0.75 A

Mounting Type :

Board Edge, Through Hole, Right Angle

Number of Positions :

240 Position

Temperature Coefficient :

50 ppm/°C

DIN Conformance :

No

Length :

6.35 mm

Connector Usage :

-

Mounting Style :

Through Hole

Series :

76060

Package :

Box

RoHS :

Non-Compliant

Packaging :

Tape and Reel (TR)

Plating Thickness :

30u inch

Current Rating (Max) :

0.75/Contact(A)

Operating Temperature :

-55°C ~ 85°C

Product Height (mm) :

23.6(mm)

Termination Method :

Press Fit

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

IEC Conformance :

No

Operating Temp Range :

-55C to 85C

Power Rating :

1 W

Tolerance :

1 %

Product :

Receptacles

Number of Positions Loaded :

All

Current Rating :

750 mA

Dielectric Withstanding Voltage :

500VAC V

PCB Contact Pattern :

RECTANGULAR

Maximum Operating Temperature :

+ 85 C

Housing Material :

Liquid Cryst Polymer

Minimum Operating Temperature :

- 55 C

Pitch :

1.9 mm

Termination Style :

Solder Pin

Contact Gender :

FEMALE

Contact Plating :

Gold Over Nickel

Manufacturer :

Molex

Type :

Daughter Card

Lead Free :

Contains Lead

Pitch (mm) :

1.9(mm)

Product Status :

Active

Contact Layout, Typical :

80 Differential Pairs

Number of Contacts :

240(POS)

Mating Contact Row Spacing :

0.054 inch

Insulator Color :

Black

Number of Contact Rows :

15

Max Power Dissipation :

1 W

Insulation Resistance :

1000000000 Ω

Filter Feature :

No

Mixed Contacts :

No

Body Depth :

1.268 inch

UL Flammability Code :

94V-0

Reliability :

COMMERCIAL

Product Type :

High Speed / Modular Connectors

Total Number of Contacts :

240

Contact Material :

COPPER ALLOY

Accessory Type :

-

Mounting Angle :

RIGHT ANGLE

Product Depth (mm) :

32.2(mm)

Color :

Black

Product Length (mm) :

38(mm)

Resistance :

2.15 Ω

Mounting Option 1 :

LOCKING

Number Of PCB Rows :

15

Subcategory :

Backplane Connectors

Width :

2.16 mm

Pbfree Code :

yes

Termination :

Press-Fit

Connector Style :

Impact, Guide Left

Housing Color :

Black

Reach Compliance Code :

Compliant

Contact Finish Termination :

Tin (Sn)

Polarization Key :

ENDS

Body/Shell Style :

Receptacle

Voltage Rating :

30 V

Body Breadth :

0.909 inch

JESD-609 Code :

e3
