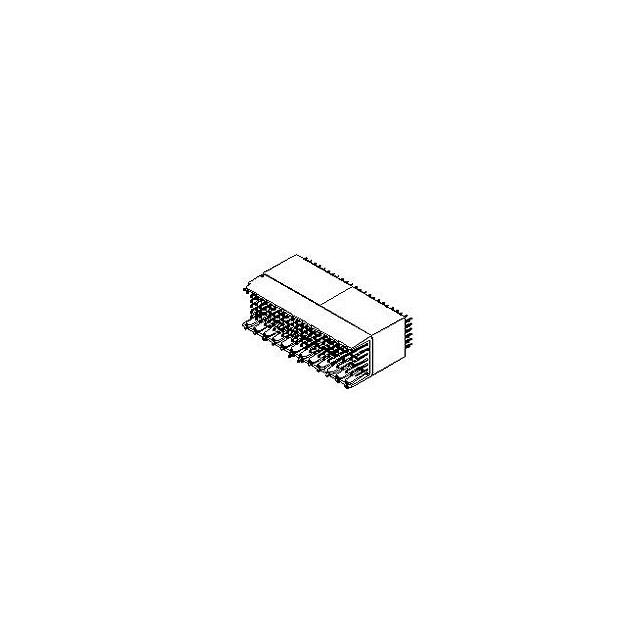

73769-1100

Manufacturer :

Molex

Product Category :

Specialized

Product Status :

Active

Contact Finish :

Gold

Polarization Key :

POLARIZED HOUSING

Number of Positions Loaded :

All

ECCN Code :

EAR99

Max Operating Temperature :

105 °C

Number of Positions :

144 Position

Minimum Operating Temperature :

- 55 C

Current Rating (Max) :

1/Contact(A)

Mounting Type :

Through Hole

Product Length (mm) :

47.84(mm)

Series :

73769

Reliability :

COMMERCIAL

Mating Contact Pitch :

0.079 inch

Material Flammability Rating :

UL94 V-0

Product Category :

Board to Board and Mezzanine Connectors

Mixed Contacts :

No

Terminal Pitch :

2 mm

Contact Resistance :

10 MΩ

Number of Circuits :

144

Operating Temperature :

-55°C ~ 105°C

Maximum Operating Temperature :

+ 105 C

Option :

GENERAL PURPOSE

Terminal Length :

0.138 inch

Subcategory :

Board to Board and Mezzanine Connectors

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Current Rating :

1 A

Mounting Style :

Through Hole

Features :

Stackable

Insertion Force-Max :

.3614 N

Tradename :

HDM

Contact Resistance Max :

10(mohm)

Orientation :

Vertical

Total Number of Contacts :

144

Current Rating (Amps) :

1A

MIL Conformance :

No

Mount :

Through Hole

Body/Shell Style :

Receptacle

PCB Contact Pattern :

RECTANGULAR

Insulator Color :

Black

Durability :

250 Cycles

Filter Feature :

No

Max Voltage Rating (AC) :

100 V

Number Of PCB Rows :

6

Voltage Rating (AC) :

100 V

Operating Temp Range :

-55C to 105C

Body Orientation :

Straight

Country of Origin :

US

Contact Layout, Typical :

-

Contact Material :

Phosphor Bronze

Pbfree Code :

yes

RoHS :

Details

Contact Pattern :

RECTANGULAR

Lifecycle Status :

Production (Last Updated: 2 years ago)

Contact Plating :

Gold Over Nickel

Pitch :

2 mm

Termination :

Through Hole

Contact Finish Thickness :

30.0µin (0.76µm)

Mating Contact Row Spacing :

0.079 inch

Type :

Hard Metric

Rated Current (Signal) :

1 A

DIN Conformance :

No

Number of Columns :

24

Body Breadth :

0.614 inch

Insulation Resistance :

1000000000 Ω

PCB Contact Row Spacing :

2.0066 mm

Number of Rows :

6 Row

Voltage Rating :

100 VAC

Voltage Rating Max :

100VAC

Min Operating Temperature :

-55 °C

HTS Code :

8536.69.40.40

Connector Usage :

-

IEC Conformance :

No

Product Type :

Board to Board and Mezzanine Connectors

UL Flammability Code :

94V-0

Number of Contact Rows :

6

Reach Compliance Code :

Compliant

Reference Standard :

UL, CSA

Product Depth (mm) :

15.6(mm)

Mounting Option 1 :

LOCKING

Additional Feature :

HDMPLUS

Product :

Headers

Termination Type :

Press Fit

Contact Gender :

Male

Mounting Angle :

Vertical

Connector Style :

HDM

Housing Material :

Thermoplastic (TP)

Number of Contacts :

144(POS)

Termination Method :

Press Fit

Gender :

HDR

Manufacturer :

Molex

Connector Type :

Header, Male Pins

Plating Thickness :

30u inch

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Termination Style :

Solder

Color :

Black

Brand :

Molex

Dielectric Withstanding Voltage :

1500VAC V

Base Product Number :

073769

Housing Color :

Black

Data Rate :

1 Gbps

Pitch (mm) :

2(mm)

Package :

Box

Packaging :

Tube

Halogen Free :

Low Halogen
