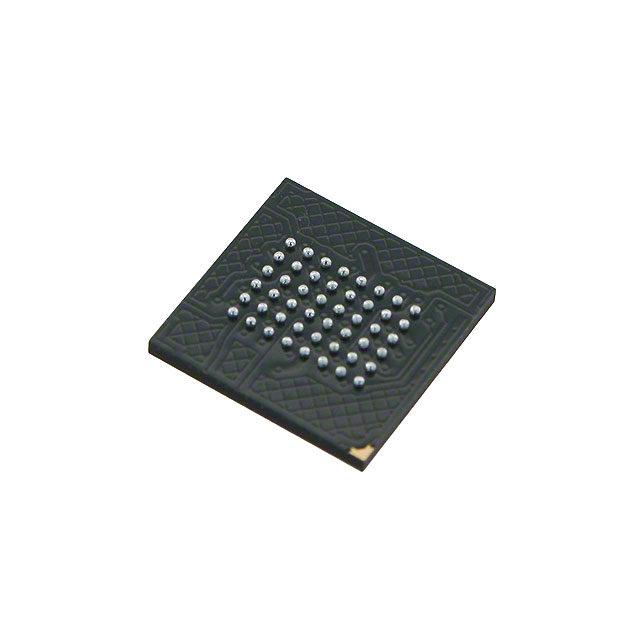

71V416L10BE

Manufacturer :

Intersil (Renesas Electronics Corporation)

Product Category :

Memory

Terminal Position :

BOTTOM

Address Bus Width :

18b

I/O Type :

COMMON

Width :

9mm

Number of Terminations :

48

Max Supply Voltage :

3.6V

Time@Peak Reflow Temperature-Max (s) :

20

Length :

9mm

Radiation Hardening :

No

Pin Count :

48

Package / Case :

TFBGA

JESD-609 Code :

e0

Pbfree Code :

No

Temperature Grade :

COMMERCIAL

Word Size :

16b

Number of Functions :

1

Density :

4 Mb

Published :

2013

Access Time :

10 ns

Max Operating Temperature :

70°C

Moisture Sensitivity Level (MSL) :

4 (72 Hours)

Peak Reflow Temperature (Cel) :

225

Lead Free :

Contains Lead

Min Operating Temperature :

0°C

Supply Voltage :

3.3V

Factory Lead Time :

12 Weeks

Operating Supply Voltage :

3.3V

Min Supply Voltage :

3V

Sync/Async :

ASYNCHRONOUS

Number of Ports :

1

Memory Type :

RAM, SDR, SRAM - Asynchronous

Standby Voltage-Min :

3V

Output Characteristics :

3-STATE

Terminal Form :

Ball

Memory Size :

512kB

Interface :

Parallel

Terminal Pitch :

0.75mm

Nominal Supply Current :

180mA

Mount :

Surface Mount

Number of Pins :

48

RoHS Status :

RoHS Compliant

Terminal Finish :

Tin/Lead (Sn63Pb37)

Thickness :

1.2mm
