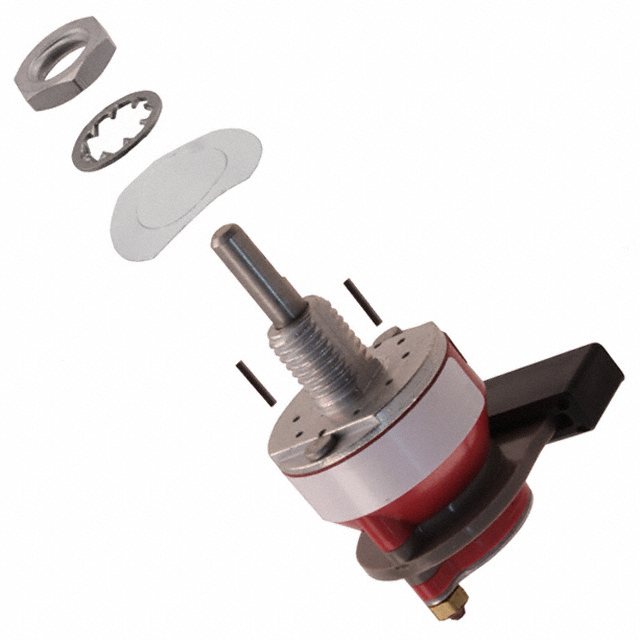

71ADF36-01-1-AJN

Manufacturer :

Grayhill, Inc.

Product Category :

Pbfree Code :

yes

Actuator Style :

Flatted Shaft

Terminal Finish :

Gold (Au) - with Nickel (Ni) barrier

Switch Function :

SP10T

Max Voltage Rating (AC) :

115V

Mounting Feature :

THROUGH HOLE-RIGHT ANGLE

Product Height (mm) :

36.78(mm)

End Contact Material :

Brass

Factory Lead Time :

16 Weeks

Series :

71

Index Angle :

36 °

Voltage - Rated AC :

115V

Switch Action :

LATCHED

Contact Finish :

--

Number of Poles :

1

Contact Current(DC)-Max :

0.25A

Number of Pins :

10

Mounting Type :

Panel Mount, Through Hole, Right Angle

Housing Material :

Diallyl/N/A

Terminal Type :

Solder Lug

Voltage Rating (AC) :

115 V

Number of Positions :

2 ~ 10

Max Voltage Rating (DC) :

30V

Length :

19.05mm

Actuator Type :

Flatted (3.17mm Dia)

Depth Behind Panel :

19.33mm

Dielectric Withstanding Voltage :

500VAC V

Insulation Material :

Diallyl Phthalate

Package :

Bulk

Terminal Material :

Brass

Max Current Rating :

300mA

Circuit per Deck :

SP10T

RoHS Status :

RoHS Compliant

Product Status :

Active

Voltage - Rated DC :

30V

Angle of Throw :

36°

End Contact Plating :

Gold

Termination Type :

Solder

Bushing Type :

1/4-32

Contact Current(AC)-Max :

0.25A

JESD-609 Code :

e4

Contact Style :

Non-Shorting

Current Rating (Amps) :

250mA AC/DC

Pole Throw Configuration :

SP10T

Number of Switch Sections :

1

Total # of Positions :

10

Insulation Resistance :

1000000000 Ω

Voltage Rating - DC :

30V

HTS Code :

8536.50.90.20

Reach Compliance Code :

Compliant

Termination :

PC Pin

RoHS :

Compliant

Actuator Length :

9.53mm

Contact Voltage(AC)-Max :

115 V

Bushing Length :

0.312 inch

AC Voltage Rating (Max) :

115

Illumination Type :

Not Required

Center Contact Plating :

Silver

Center Contact Material :

BERYLLIUM COPPER

Contact Timing :

Non-Shorting (BBM)

Throw Configuration :

DP, SP, SP10T

Base Product Number :

71ADF36

Surface Mount :

No

Additional Feature :

ADJUSTABLE STOP

PCB Hole Count :

10

Product Length (mm) :

19.05(mm)

Number of Decks :

1

Termination Style :

PC Pin

Operating Force :

2.880 ~ 23gfm

Mount :

Panel, Through Hole

Mounting Style :

Panel

Current Rating (Max) :

0.3(A)

Depth :

19.05mm

Contact Voltage(DC)-Max :

28 V

Width :

17.45mm

Product Depth (mm) :

19.05(mm)

Electrical Life :

15000 Cycle(s)

Contact Resistance :

0.05mOhm

Lead Free :

Lead Free

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Bushing Diameter :

0.25 inch

Contact (DC) Max Rating R Load :

.25A@28VDC

Actuator Material :

Stainless Steel

Number of Poles per Deck :

1

Switch Type :

ROTARY SWITCH

Panel Cutout Dimensions :

--

DC Voltage Rating (Max) :

30

Features :

--

Body Length or Diameter :

17.4498 mm

Manufacturer :

Grayhill Inc

Packaging :

Box

Voltage Rating (DC) :

30 V

Voltage Rating - AC :

115V

Contact Material :

Silver Alloy

Current Rating :

250mA

Index Stops :

Adjustable

Body Height :

19.3294 mm

Published :

2003
