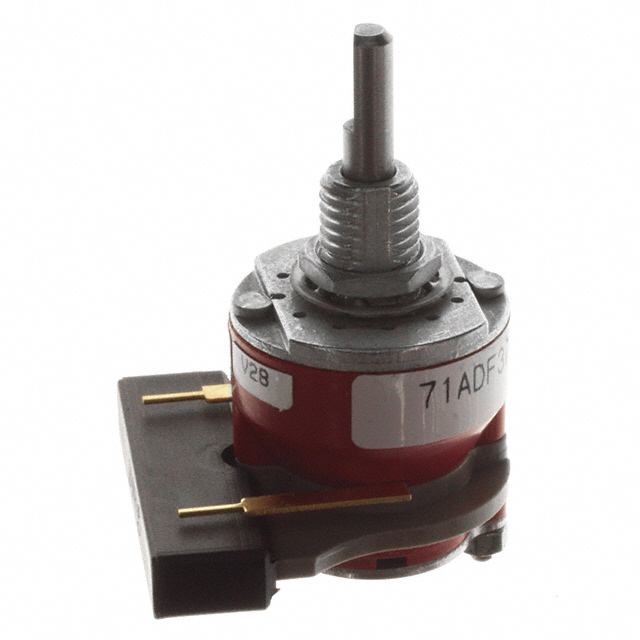

71ADF30-01-2-AJS

Manufacturer :

Grayhill, Inc.

Product Category :

Voltage - Rated DC :

30V

Number of Switch Sections :

1

Terminal Finish :

Gold (Au) - with Nickel (Ni) barrier

Product Status :

Active

Mount :

Panel, Through Hole

Series :

71

Current Rating :

250mA

RoHS Status :

RoHS Compliant

Number of Positions :

2 ~ 6

Index Stops :

Adjustable

Termination Type :

Solder

Termination Style :

PC Pin

Voltage - Rated AC :

115V

Depth Behind Panel :

19.33mm

JESD-609 Code :

e4

Termination :

PC Pin

HTS Code :

8536.50.70.00

Operating Force :

2.880 ~ 23gfm

Circuit per Deck :

DP6T

Voltage Rating - AC :

115V

Contact Material :

Silver Alloy

Index Angle :

30 °

Contact Timing :

Shorting (MBB)

Switch Type :

ROTARY SWITCH

Factory Lead Time :

16 Weeks

Actuator Length :

9.53mm

Number of Decks :

1

ECCN Code :

EAR99

Number of Pins :

6

Voltage Rating - DC :

30V

Reach Compliance Code :

Compliant

Current Rating (Amps) :

250mA AC/DC

Base Product Number :

71ADF30

Angle of Throw :

30°

Mounting Type :

Panel Mount, Through Hole, Right Angle

Pbfree Code :

yes

Contact Style :

Shorting

Lead Free :

Lead Free

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Poles per Deck :

2

Package :

Bulk

Panel Cutout Dimensions :

--

Actuator Type :

Flatted (3.17mm Dia)

Features :

--

Switch Action :

LATCHED

Switch Function :

DP6T

Manufacturer :

Grayhill Inc

Surface Mount :

No

Contact Finish :

--

Mounting Feature :

THROUGH HOLE-RIGHT ANGLE

Published :

2003
