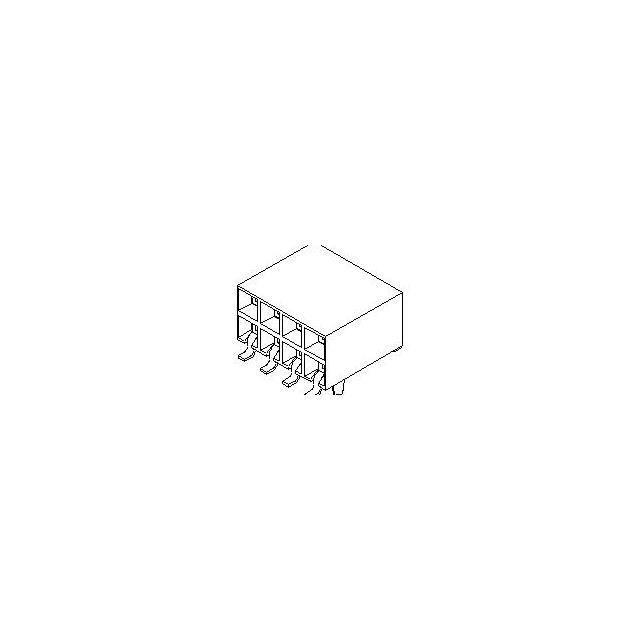

71979-0207

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

Factory Lead Time :

8 Weeks

DIN Conformance :

No

Housing Material :

Plastic

Reference Standard :

UL, CSA

RoHS Status :

RoHS Compliant

Mount :

Surface Mount

Polarization Key :

POLARIZED HOUSING

Height :

5.69mm

ELV :

Compliant

Connector Type :

Receptacle, Socket

Number Of PCB Rows :

2

Filter Feature :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Glow Wire Compliant :

Non-Compliant

Pitch :

2.54mm

Number of Conductors :

ONE

Total Number of Contacts :

14

ECCN Code :

EAR99

Termination :

Solder

Option :

GENERAL PURPOSE

MIL Conformance :

No

HTS Code :

8536.69.40.40

Length :

17.6mm

Mixed Contacts :

No

Color :

Black

Number of Positions :

14

UL Flammability Code :

94V-0

PCB Contact Pattern :

RECTANGULAR

Contact Plating :

Gold

Row Spacing - Mating :

2.54 mm

Durability :

50 Cycles

Plating Thickness :

15μin

Reliability :

COMMERCIAL

Contact Resistance :

15mOhm

Number of Rows :

2

Dielectric Withstanding Voltage :

500VAC V

Contact Pattern :

RECTANGULAR

Current Rating :

1A

Operating Temperature (Max) :

105°C

Body Depth :

0.345 inch

Lead Free :

Lead Free

Contact Material :

Bronze

Contact Style :

SQ PIN-SKT

Contact Finish - Mating :

NOT SPECIFIED

Halogen Free :

Low Halogen

Insulation Resistance :

1000000000Ohm

Published :

2012

Pbfree Code :

yes

IEC Conformance :

No

Width :

7.87mm

Operating Temperature (Min) :

-40°C

Gender :

FEMALE

Orientation :

RIGHT ANGLE
