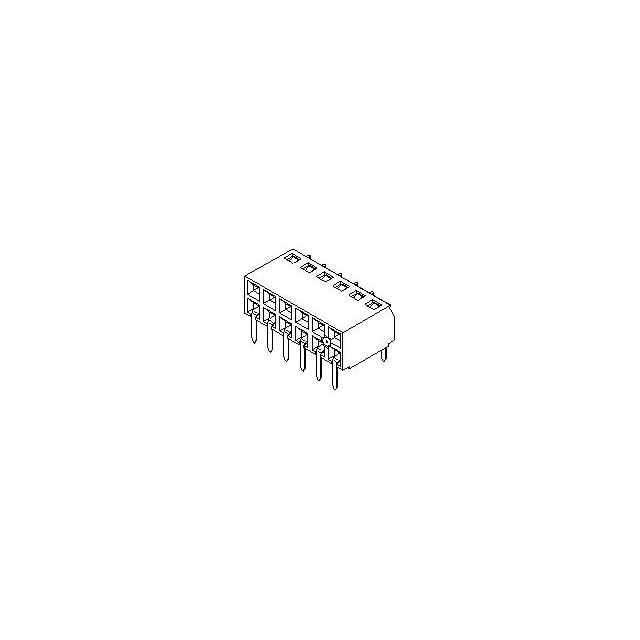

71973-0322

Manufacturer :

Molex

Product Category :

Headers, Receptacles, Female Sockets

RoHS :

Details

Product Status :

Active

Number of Rows :

2 Row

Application :

Board-to-Board

Flammability Rating :

UL 94 V-0

Dielectric Withstanding Voltage :

500VAC V

Package :

Box

Contact Resistance Max :

5(mohm)

Body Orientation :

RIGHT ANGLE

Voltage Rating :

250 V

DIN Conformance :

No

Contact Material :

Phosphor Bronze

Current Rating :

2 A

Mating Contact Pitch :

0.1 inch

Body Breadth :

0.224 inch

Mating Contact Row Spacing :

0.1 inch

Option :

GENERAL PURPOSE

Durability :

50 Cycles

Reliability :

COMMERCIAL

Reference Standard :

UL, CSA

Product Length (mm) :

55.75(mm)

Mounting Style :

Through Hole

Insulation Resistance :

5000000000 Ω

Current Rating (Max) :

2/Contact(A)

Terminal Length :

0.12 inch

Plating Thickness :

30u inch

PCB Contact Pattern :

RECTANGULAR

Total Number of Contacts :

44

Connector Type :

BOARD CONNECTOR

Number of Contact Rows :

2

Mounting Option 1 :

LOCKING

Series :

71973

Contact Style :

SQ PIN-SKT

Gender :

RCP

Polarization Key :

POLARIZED HOUSING

Flammability :

94V-0

Pitch (mm) :

2.54(mm)

Product Category :

Headers and Wire Housings

Number of Contacts :

44(POS)

HTS Code :

8536.69.40.40

Subcategory :

Headers and Wire Housings

Number Of PCB Rows :

2

PCB Contact Row Spacing :

7.874 mm

Contact Plating :

Gold Over Nickel

Minimum Operating Temperature :

- 40 C

Type :

Socket Strip

IEC Conformance :

No

Manufacturer :

Molex

Insertion Force-Max :

1.3344 N

Mixed Contacts :

No

Housing Color :

Black

Body/Shell Style :

Receptacle

Mounting Type :

BOARD

Operating Temp Range :

-40C to 105C

Rated Current (Signal) :

2 A

Number of Positions :

44 Position

Termination Style :

Solder Pin

Pitch :

2.54 mm

Contact Gender :

FEMALE

Voltage Rating Max :

250V

Terminal Pitch :

2.54 mm

Contact Pattern :

RECTANGULAR

Maximum Operating Temperature :

+ 105 C

Termination Method :

Solder

Orientation :

RIGHT ANGLE

Termination Type :

Solder

Product Depth (mm) :

8.76(mm)

Filter Feature :

No

Brand :

Molex

Insulator Color :

Black

Body Depth :

0.345 inch

Reach Compliance Code :

Compliant

MIL Conformance :

No

Product :

Headers

Pbfree Code :

yes

Withdrawl Force-Min :

.278 N

ECCN Code :

EAR99

Product Type :

Headers and Wire Housings

Contact Resistance :

20 mΩ

Mounting Angle :

RIGHT ANGLE

Tradename :

C-Grid

Packaging :

Tube

Product Height (mm) :

5.69(mm)

UL Flammability Code :

94V-0
