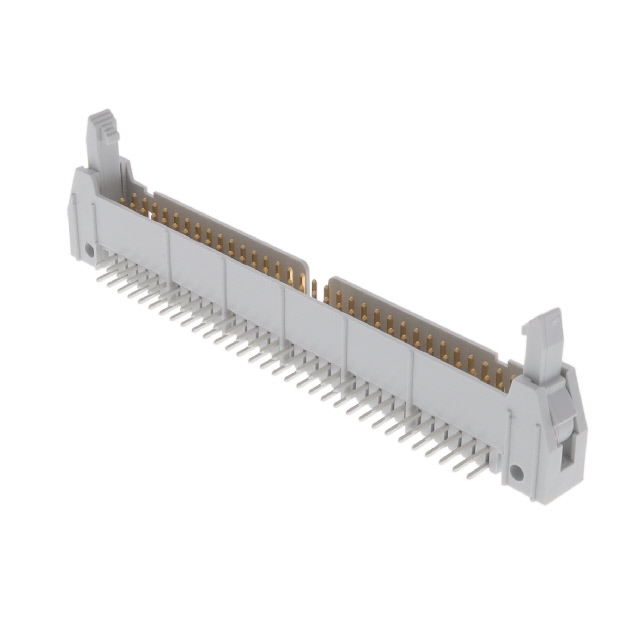

71922-164LF
Or copy the link below:
- Mfr.Part #
- 71922-164LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 64POS 2.54MM
- Stock
- 617
- In Stock ：
- 617
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Male Pins
- Contact Material :
- Phosphor Bronze
- Fastening Type :
- Latch Lock/Eject Hooks
- Insulation Color :
- Gray
- Number of Contacts :
- 64
- Housing Material :
- Thermoplastic
- Style :
- Board to Cable/Wire
- Contact Shape :
- Square
- Contact Finish - Post :
- Tin
- Lead Free :
- Lead Free
- Shrouding :
- Shrouded - 4 Wall
- Factory Lead Time :
- 8 Weeks
- Material Flammability Rating :
- UL94 V-0
- Orientation :
- RIGHT ANGLE
- Housing Color :
- Grey
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Mating Post Length :
- 5.8mm
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Connector Type :
- Header
- Length :
- 100.58mm
- Number of Rows :
- 2
- Number of Positions Loaded :
- All
- Contact Finish - Mating :
- Gold, GXT™
- RoHS Status :
- RoHS Compliant
- Contact Plating :
- GXT, Gold
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Length - Post :
- 0.114 2.90mm
- Max Operating Temperature :
- 125°C
- Termination :
- Solder
- Packaging :
- Tube
- Min Operating Temperature :
- -65°C
- Contact Length - Mating :
- 0.228 5.80mm
- Pitch - Mating :
- 0.100 2.54mm
- Series :
- Quickie™
- Mounting Type :
- Through Hole, Right Angle
- Contact Type :
- Male Pin
- Mount :
- Through Hole
- Lead Length :
- 2.9mm
- Gender :
- Male
- Pitch :
- 2.54mm
- Feature :
- Keying Slot, Mounting Flange
- Depth :
- 26.8mm
- Color :
- Grey
- Insulation Material :
- Thermoplastic, Glass Filled
- Insulation Height :
- 0.339 8.61mm
- Number of Positions :
- 64
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Max Voltage Rating (AC) :
- 1.5kV
- Datasheets
- 71922-164LF
71922-164LF Documents
Quickie™ Series 2-Row Header Solder Phosphor Bronze Tube Through Hole, Right Angle Gold, GXT™ Thermoplastic, Glass Filled 64-Position Board to Cable/Wire 0.339 8.61mm Height
71922-164LF Overview
Packaging is in the form of Header.This device has a Through Hole, Right Angle mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the Quickie™ Series.If the temperature is below 125°C, it's best to use it.-65°C is the minimum temperature for this device.Several benefits come from the Keying Slot, Mounting Flange feature.There is a mounting hole at Through Hole.
71922-164LF Features
Quickie™ series
71922-164LF Applications
There are a lot of Amphenol ICC (FCI)
71922-164LF Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
