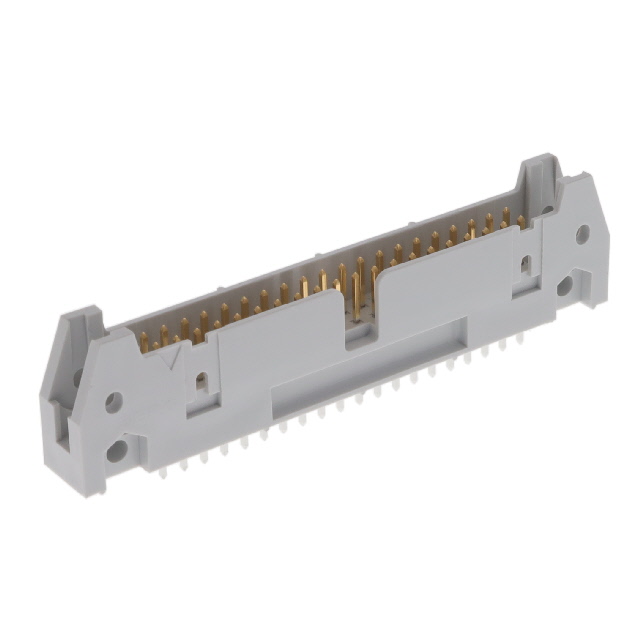

71918-040LF
Or copy the link below:
- Mfr.Part #
- 71918-040LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 40POS 2.54MM
- Stock
- 1,407
- In Stock ：
- 1,407
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Male Pins
- Insulation Color :
- Gray
- Contact Shape :
- Square
- Material Flammability Rating :
- UL94 V-0
- Current Rating :
- 2A
- RoHS Status :
- RoHS Compliant
- Style :
- Board to Cable/Wire
- Series :
- Quickie™
- Insulation Height :
- 0.685 17.40mm
- Lead Length :
- 2.9mm
- Voltage - Rated :
- 200V
- Feature :
- Keying Slot, Mounting Flange
- Fastening Type :
- Push-Pull
- Shrouding :
- Shrouded - 4 Wall
- Min Operating Temperature :
- -40°C
- Contact Finish - Post :
- Tin
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Mount :
- Through Hole
- Contact Type :
- Male Pin
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Length :
- 70.1mm
- Packaging :
- Tube
- Lead Free :
- Lead Free
- Orientation :
- Straight
- Max Operating Temperature :
- 125°C
- Termination :
- Solder
- Contact Finish - Mating :
- Gold, GXT™
- Factory Lead Time :
- 8 Weeks
- Color :
- Grey
- Contact Gender :
- Male
- Flammability Rating :
- UL94 V-0
- Pitch :
- 2.54mm
- Number of Contacts :
- 40
- Max Voltage Rating (AC) :
- 1.5kV
- Pitch - Mating :
- 0.100 2.54mm
- Mating Post Length :
- 5.8mm
- Number of Positions :
- 40
- Connector Type :
- Header
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Number of Positions Loaded :
- All
- Housing Color :
- Grey
- Insulation Resistance :
- 100GOhm
- Mounting Type :
- Through Hole
- Contact Length - Mating :
- 0.228 5.80mm
- Depth :
- 8.6mm
- Number of Rows :
- 2
- Insulation Material :
- Thermoplastic, Glass Filled
- Contact Material :
- Phosphor Bronze
- Contact Plating :
- GXT, Gold
- Housing Material :
- Thermoplastic
- Contact Length - Post :
- 0.114 2.90mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 71918-040LF
71918-040LF Documents
Quickie™ Series 2-Row Header Solder Phosphor Bronze Tube Through Hole Gold, GXT™ Thermoplastic, Glass Filled 40-Position Board to Cable/Wire 0.685 17.40mm Height
71918-040LF Overview
A Header packaging is included.It's mounted Through Hole.We use a Tube case to package the product.It's from the Quickie™ Series.Ideally, it should be used at temperatures below 125°C.Temperatures below -40°C are required for this device.In many ways, its Keying Slot, Mounting Flange feature makes it more powerful.It's mounted by Through Hole.
71918-040LF Features
Quickie™ series
71918-040LF Applications
There are a lot of Amphenol ICC (FCI)
71918-040LF Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
