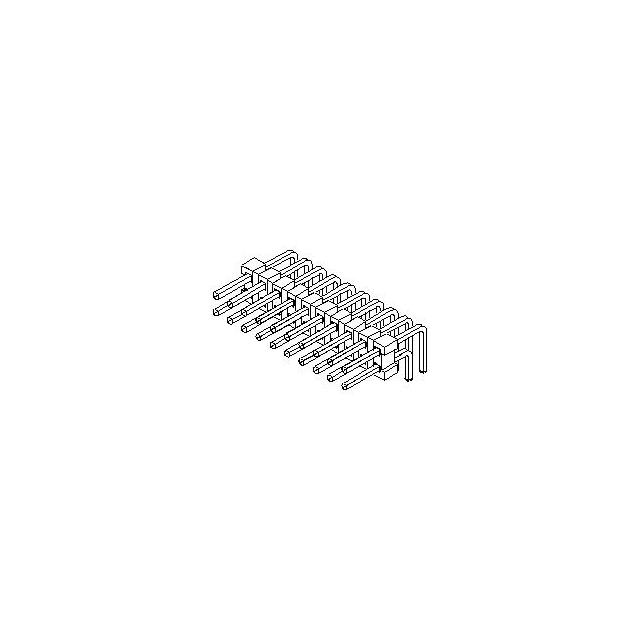

71764-0018

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Product :

Headers

Contact Gender :

Pin (Male)

Voltage Rating :

250 V

Tradename :

C-Grid

Maximum Operating Temperature :

+ 105 C

Housing Color :

Black

Subcategory :

Headers and Wire Housings

Mating Information :

7859

Mixed Contacts :

No

Body Orientation :

RIGHT ANGLE

Current Rating :

3 A

Brand :

Molex

Contact Material :

COPPER ALLOY

Mounting Type :

BOARD

Contact Finish Termination :

TIN (150) OVER NICKEL

UL Flammability Code :

94V-0

Product Height (mm) :

5.08(mm)

DIN Conformance :

No

Termination Post Length :

2.79 mm

Pitch :

2.54 mm

Type :

Unshrouded Header

Termination Style :

Solder Pin

Number of Contacts :

18(POS)

Option :

GENERAL PURPOSE

Gender :

HDR

Current Rating (Max) :

3/Contact(A)

Product Depth (mm) :

13.54(mm)

Termination Type :

Solder

Minimum Operating Temperature :

- 40 C

Pitch (mm) :

2.54(mm)

Product Category :

Headers and Wire Housings

Reach Compliance Code :

Unknown

IEC Conformance :

No

Housing Material :

Thermoplastic

Manufacturer :

Molex

Additional Feature :

LOW PROFILE

Flammability :

94V-0

Packaging :

Tube

Terminal Pitch :

2.54 mm

Contact Type :

-

Product Length (mm) :

22.36(mm)

Connector Type :

BOARD CONNECTOR

Termination Method :

Solder

Product Type :

Headers and Wire Housings

Number of Rows :

2 Row

MIL Conformance :

No

RoHS :

Details

Orientation :

RIGHT ANGLE

Flammability Rating :

UL 94 V-0

Mounting Style :

Through Hole

Accessory Type :

-

JESD-609 Code :

e3

Series :

*

Mating Post Length :

6.1 mm

Number of Contact Rows :

2

Voltage Rating Max :

250V

Mounting Angle :

RIGHT ANGLE

Product Status :

Active

Pbfree Code :

yes

Total Number of Contacts :

18

Row Spacing :

2.54 mm

Filter Feature :

No

Package :

Box

Operating Temp Range :

-40C to 105C

Contact Plating :

TIN OVER NICKEL

Number of Positions :

18 Position

Application :

Board-to-Board

Contact Resistance Max :

15(mohm)
