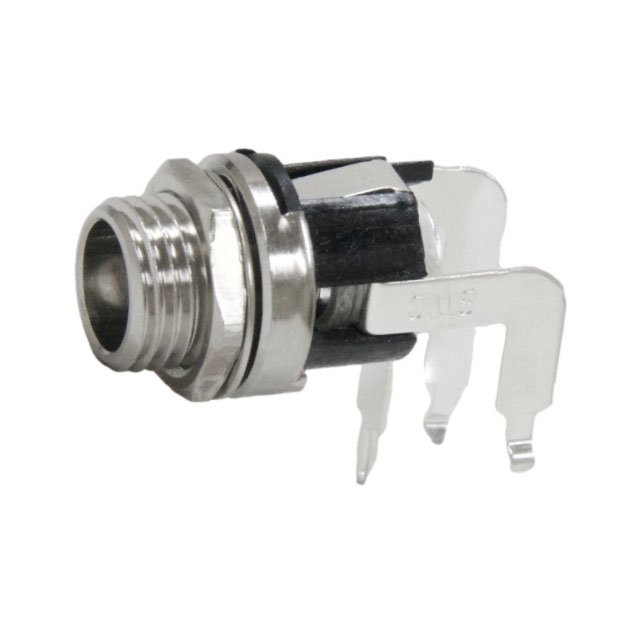

712RALP

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Features :

Mounting Hardware, Thread Lock

Voltage Rating :

24 VDC

Body Color :

Silver

Minimum Operating Temperature :

- 55 C

Actual Diameter :

-

Contact Material - Plating :

Silver

Current Rating :

5 A

Termination :

Solder

Body Material :

COPPER ALLOY

Maximum Operating Temperature :

+ 85 C

Termination Style :

Solder Lug

Connector Type :

JACK

Gender :

JACK

Voltage - Rated :

12VDC

Includes :

-

Operating Temperature :

-55°C ~ 85°C

Outside Contact Diameter :

5.5 mm

Pin Diameter :

2.5mm

RoHS :

Details

Current Rating (Amps) :

5 A

Material Flammability Rating :

-

Contact Material :

COPPER ALLOY

Thread Size :

5/16-32

Housing Material :

Thermoplastic (TP)

Itar Registered :

Unavailable

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Internal Switch(s) :

Single Switch, Normally Closed

Series :

LP

Inside Contact Diameter :

2.5 mm

Insulation Color :

-

Product Status :

Active

Mounting Feature :

Bulkhead - Front Side Nut

Contact Gender :

Pin (Male)

Mounting Style :

Panel

ECCN :

EAR99

Shielding :

Unshielded

Contact Plating :

Nickel

Package :

Bulk

Mounting Angle :

RIGHT ANGLE

Product :

Jacks

Insulation Resistance :

10000 MOhms

IP Rating :

-

Ingress Protection :

-

Mounting Type :

Panel Mount, Through Hole, Right Angle

Packaging :

Bulk

Mating Length/Depth :

0.374 (9.50mm)

Number of Positions/Contacts :

2 Conductors, 3 Contacts
