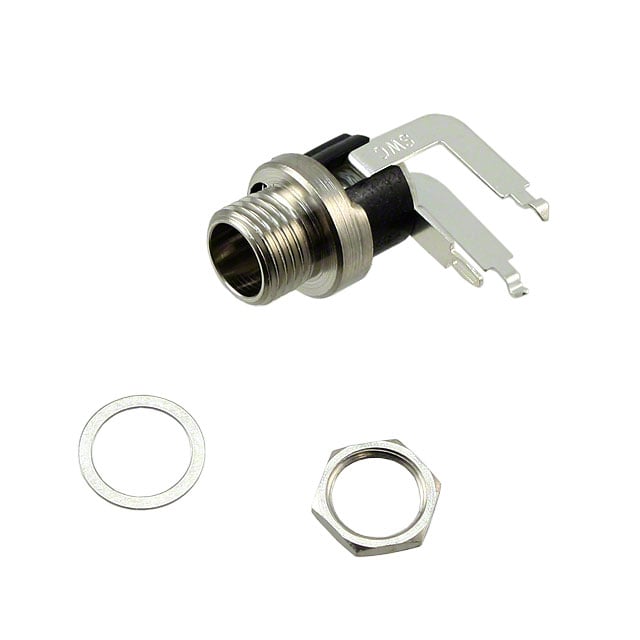

712RA

Manufacturer :

Switchcraft / Conxall

Product Category :

Power Connectors

Number of Ports :

1

Number of Contacts :

8

Contact Material - Plating :

Silver

Voltage - Rated DC :

12V

Orientation :

RIGHT ANGLE

Body Color :

Silver, Black

Option :

GENERAL PURPOSE

Max Voltage Rating (DC) :

12V

Contact Finish - Mating :

NOT SPECIFIED

Feature :

Mounting Hardware, Thread Lock

Packaging :

Bulk

Color :

Black

Length :

19.5mm

Body Material :

COPPER ALLOY

MIL Conformance :

No

Connector Type :

JACK

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

Not Applicable

Mounting Type :

Through Hole, Right Angle

Contact Gender :

FEMALE

Rated Current (Power) :

5A

Insulation Resistance :

1GOhm

Number of Positions/Contacts :

2 Conductors, 3 Contacts

Number of Terminations :

3

Max Current Rating :

5A

RoHS Status :

ROHS3 Compliant

Mounting Feature :

Bulkhead - Front Side Nut

Gender :

Male

IEC Conformance :

No

Termination :

Solder

Pbfree Code :

yes

Current Rating :

5A

Pitch :

3.3mm

Contact Material :

COPPER ALLOY

Thread Size :

5/16-32

Diameter :

10.92mm

Shielding :

Unshielded

Published :

1999

Actual Diameter :

0.098 (2.50mm ID), 0.217 (5.50mm OD)

Factory Lead Time :

8 Weeks

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Housing Material :

Thermoplastic

Internal Switch(s) :

Single Switch, Normally Closed

Mount :

Panel, Through Hole

Lead Free :

Lead Free

REACH SVHC :

No SVHC

ECCN Code :

EAR99

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer
