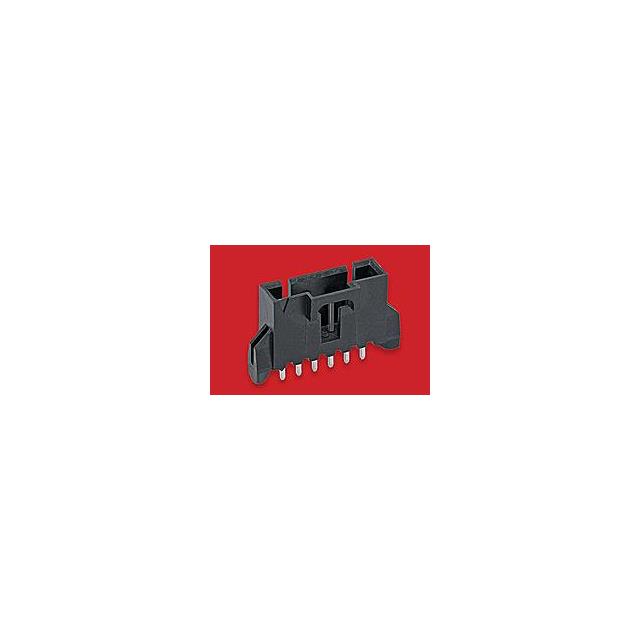

70545-0083

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Finish Termination :

TIN (75) OVER NICKEL (50)

Mounting Style :

Through Hole

RoHS :

Compliant

Durability :

50 Cycles

Material :

Brass

Number of Rows :

1

Mating Post Length :

6.1 mm

Body Breadth :

0.26 inch

Dielectric Withstanding Voltage :

600VAC V

Pbfree Code :

yes

Pitch (mm) :

2.54(mm)

HTS Code :

8536.69.40.40

Flammability :

94V-0

Termination Type :

Solder

Contact Style :

SQ PIN-SKT

Package :

Box

Series :

70545

Mating Contact Pitch :

0.1 inch

Voltage Rating Max :

250V

Mixed Contacts :

No

Maximum Operating Temperature :

+ 105 C

Operating Temp Range :

-40C to 105C

JESD-609 Code :

e3

PCB Contact Pattern :

RECTANGULAR

Rated Current (Signal) :

3 A

Contact Resistance :

15 mΩ

Body Depth :

0.465 inch

Manufacturer :

Molex

Additional Feature :

LATCHED, POLARIZED

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Termination :

Through Hole

Total Number of Contacts :

14

Current Rating (Max) :

3/Contact(A)

Reach Compliance Code :

Compliant

Number Of PCB Rows :

1

Mounting Option 1 :

Latch

Insulation Resistance :

1000000000 Ω

Lifecycle Status :

Production (Last Updated: 2 years ago)

Termination Post Length :

3.3 mm

Body Orientation :

Straight

Product Height (mm) :

11.81(mm)

Contact Pattern :

RECTANGULAR

Contact Resistance Max :

30(mohm)

MIL Conformance :

No

Termination Method :

Solder

Termination Style :

Solder Pin

Type :

Shrouded Header

Insulator Color :

Black

Contact Material :

Bronze

Product Length (mm) :

42.88(mm)

DIN Conformance :

No

Plating :

Tin

Contact Plating :

Gold

Mounting Angle :

Straight

Reliability :

COMMERCIAL

Flammability Rating :

UL94 V-0

Gender :

HDR

Reference Standard :

UL, CSA

Tradename :

SL

Product Depth (mm) :

6.6(mm)

Subcategory :

Headers and Wire Housings

UL Flammability Code :

94V-0

Current Rating :

3 A

Packaging :

Tube

Number of Circuits :

14

Product :

Headers

IEC Conformance :

No

Plating Thickness :

30u inch

Product Type :

Headers and Wire Housings

Polarization Key :

CTR W/GUIDE SLOTS

Voltage Rating :

250 V

Pitch :

2.54 mm

Brand :

Molex

ELV :

Compliant

Option :

GENERAL PURPOSE

Product Status :

Active

Number of Positions :

14

Housing Color :

Black

ECCN Code :

EAR99

Number of Contacts :

14(POS)

Filter Feature :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Type :

-

Orientation :

Vertical

Housing Material :

Thermoplastic

Minimum Operating Temperature :

- 40 C

Accessory Type :

-

Body/Shell Style :

Receptacle

Terminal Pitch :

2.54 mm

Connector Type :

BOARD CONNECTOR

Contact Gender :

Pin (Male)

Terminal Length :

0.13 inch

Mounting Type :

BOARD

Country of Origin :

US

Glow Wire Compliant :

Non-Compliant

Application :

Signal

Product Category :

Headers and Wire Housings

Number of Contact Rows :

1

Board Mounting Option :

SOLDER HOLDING POSTS
